| Brand Name: | Anycut |
| Model Number: | ZK760 |
| MOQ: | 1 Piece |
| Price: | $328~485/piece |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | 1~4 pieces/2 days;5~30 pieces/15 days;31~100 pieces/20 days |

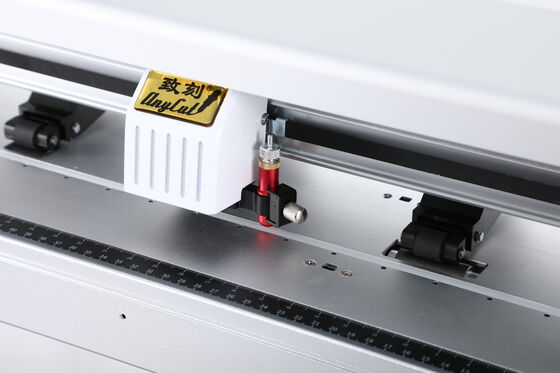

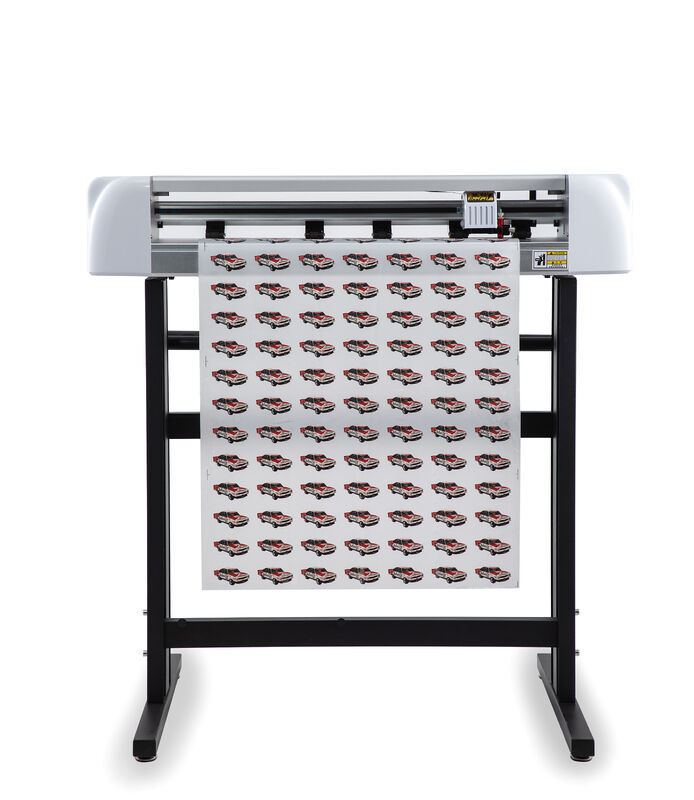

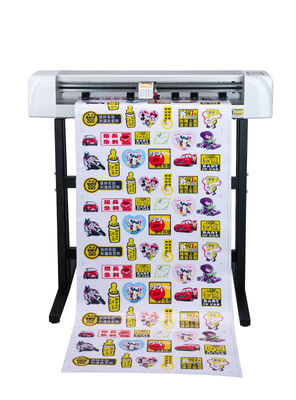

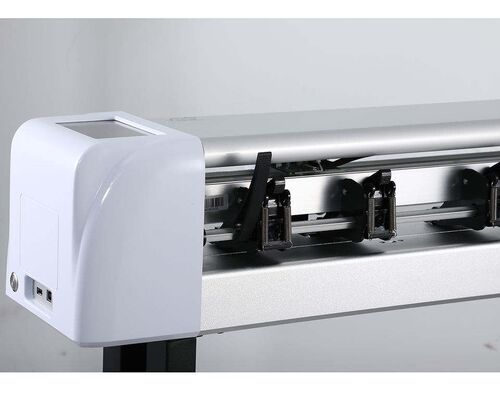

Anycut 30 Inch Cutting Plotter Auto Feeding Precise Cutting Smart Compatiblity
The ZK760 is a high-efficiency, intelligent automatic induction feeding plotter, designed for label, tag, and signage production scenarios. Its core advantages lie in automatic induction feeding + vacuum adsorption: materials are fed precisely automatically once placed, and the vacuum adsorption technology significantly reduces material displacement risks during cutting, enabling smooth trimming of cardstock, sticker paper, and other materials.
Equipped with a camera-based fully automatic contour positioning system, it achieves high-precision cutting (up to ±0.01mm) without manual calibration. Paired with a cutting speed of 700mm/s, it balances efficiency and precision. Operation-wise, it supports WiFi wireless connection and driver-free plug-and-play; combined with a pure capacitive LCD touchscreen, the entire process from connection to operation is convenient and efficient. Compatible with all Windows systems and mainstream design software, it’s a practical tool for small studios and batch production scenarios
| MODEL | ZK760 |
| Max. media width | 760mm |
| Max. cutting width | 640mm |
| Auto contour cut | Camera (automatically contour cutting) |

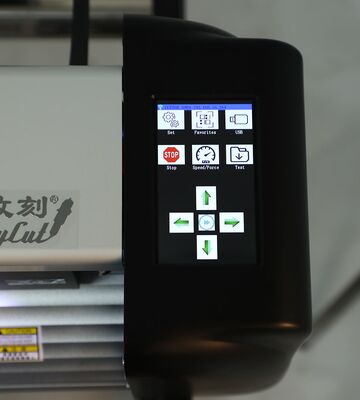

| Control panel | Pure capacitive LCD touch screen |
| Packing size (outer box) | L1100mm*W330mm*H280mm |
| Packing size (leg frame) | L1000mm*W170mm*H550mm |
| Gross/Net weight | 29kgs/25kgs |
| Maximum cutting length | Unlimited |
| Cutting accuracy | +/- 0.01mm |
| Repeatability | 0.082mm |
| Cutting speed | 700mm/s |
| Blade type | Rowland blade |
| Max.force | 1000g |

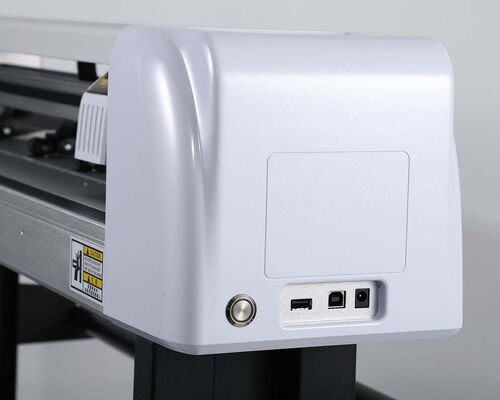

| Connect or interface | USB cable/Udisk/WIFI(optional) |
| Power | ﹤100w |
| Working environment | ﹢5℃﹣﹢35℃ |
| Power supply | 100v-240v(adaptive) |
| Support software | CDR/AI/PS/Contour software/signmaster(optional) |
| Memory | 1G |
| Support system | All versions of windows |
