| Brand Name: | Anycut |
| Model Number: | ZKD1800-SF |
| MOQ: | 1piece |
| Price: | $1284~1684/piece |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | 1~4 pieces/2 days;5~30 pieces/15 days;31~100 pieces/20 days |

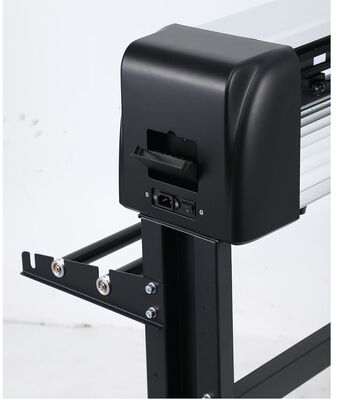

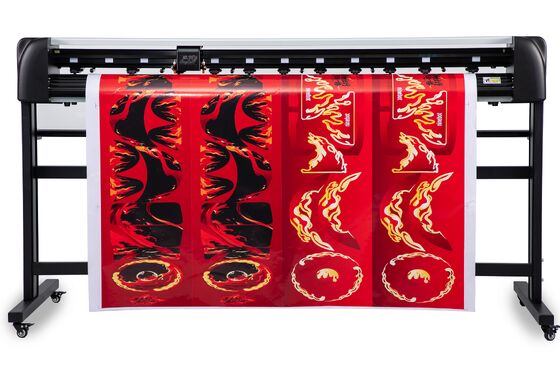

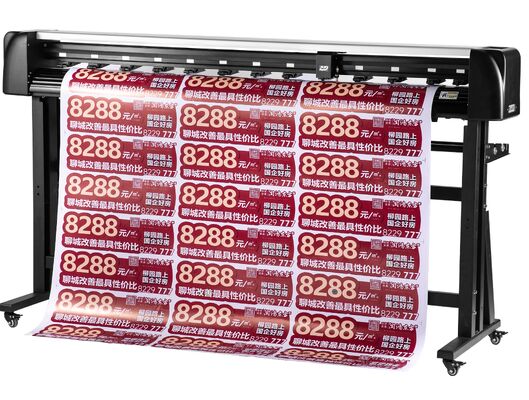

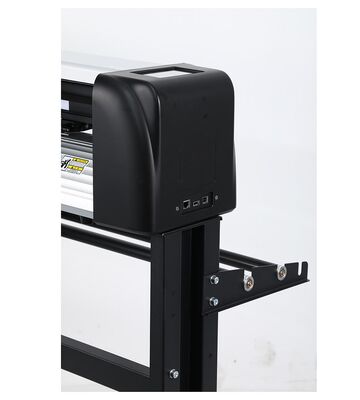

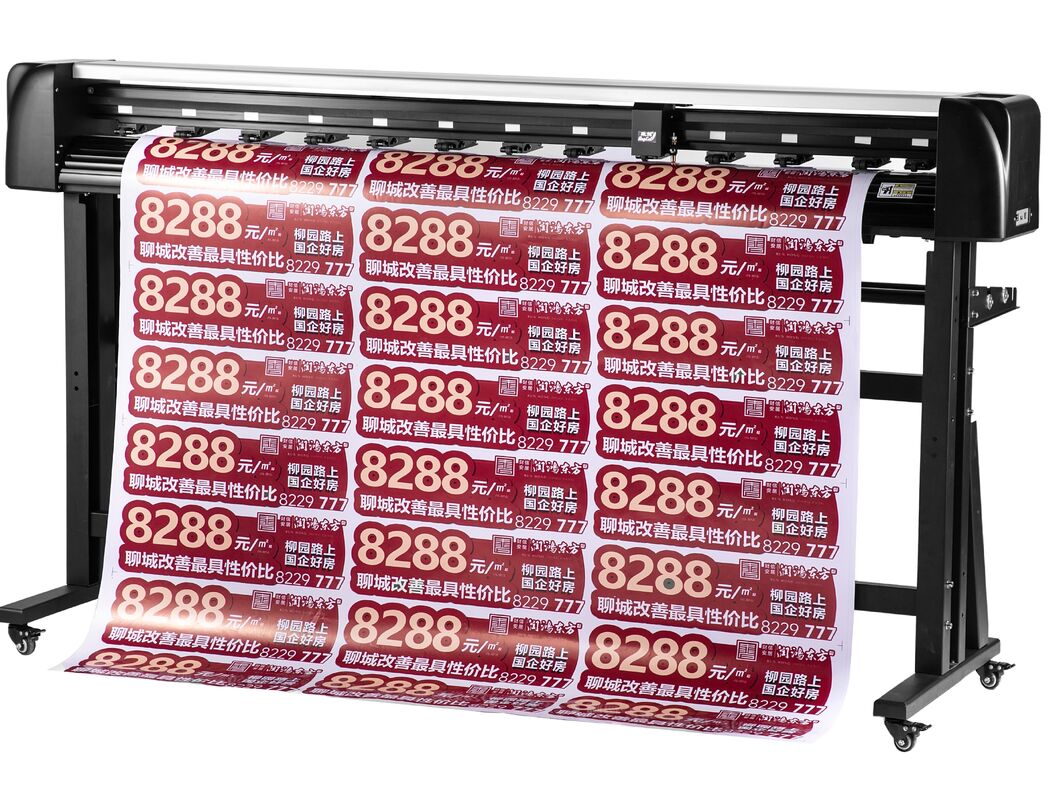

Anycut Dual-head Servo Smart Cutting Plotter Intelligent Positioning High-Pressure Multi-Function

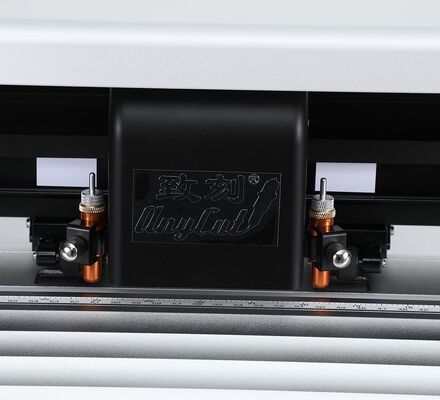

The ZKD1800-SF is a multi-process high-speed cutting machine centered on dual-head servo dual-drive + intelligent visual precision positioning. Equipped with dual working heads and a high-speed servo motor, paired with a camera automatic positioning system, it can simultaneously complete composite processing (half-cut, full-cut, creasing, etc.), enabling one-stop "positioning-cutting-forming" operation. It avoids the process waiting time of single-head equipment, while combining 2000g ultra-high pressure and ±0.01mm-level precision to balance the cutting quality of delicate materials (such as reflective film and wall stickers) and the production efficiency of batch materials (such as car stickers and signs). Its 1200mm/s high-speed operation further shortens the delivery cycle of large orders.
The machine supports dual connectivity (WiFi/wired network), adapting to the network environments of different workshops. The combination of a 5.5-inch touch screen and an ARM smart dual-core mainboard not only lowers the operation threshold but also supports all Windows systems and mainstream design software. From the refined production of advertising signs to the mass processing of decorative materials, the ZKD1800-SF, with its differentiated advantages of "dual-head dual-drive + intelligent positioning precision cutting", serves as a core tool for "high efficiency + precision + ease of use" in multi-scenario production.
| MODEL | ZK1800-SF |
| Max. media width | 1800mm |
| Max. cutting width | 1650mm |
| Packing size | L2160mm*W400mm*H440mm |
| Machine size | L 2060mm*W 600mm*H1100mm |
| Gross/Net weight | 75kgs/59kgs |
| Control panel | 5.0inch LCD touch screen |
| Motor | Servo drive + Servo motor |
| Cutting length | Unlimited |
| Cutting accuracy | +/- 0.01mm |
| Repeatability | 0.082mm |
| Max.cutting speed | 1200mm/s |
| Max.force | 2000g |
| Main board | ARM smart dual-core chip |
| Auto contour cut | Camera |
| Number of heads | 1 |
| Number of Y motor | 2 |
| Blade type | Rowland blade |
| Floorstand | yes |
| Drawing instruction | Automatic recognition DMPI and HPGL |
| Connect or interface | USB cable/Udisk/web cable/WIFI(optional) |
| Power | ﹤100w |
| Working environment | ﹢5℃﹣﹢35℃ |
| Power supply | 100v-240v(adaptive),50HZ/60HZ |
| Support software | CDR/AI/PS/Contour software/Signmaster(optional) |
| Memory | 1G |
| Support system | All versions of windows |
