| Brand Name: | Anycut |
| Model Number: | SVD600PRO_RL |
| MOQ: | 1 |
| Price: | USD4625/PC |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | 50units/month |
Adsorption Rotary Wheel Creasing Label Cutting Machine
Anycut SVD600PRO_RL, rotary wheel creasing tool, vacuum adsorption feeding, maximum crease and cut thickness 600gsm, maximum cutting width
590mm. 3000g pressure, large paper-holding house suitable for batch cutting. 4 rows of paper-pressing rollers, move paper more smoothly. High speed
servo motor, cutting fast and accurate.
| MODEL | ZKSVD600PRO_RL |
| Max. media width | 620mm |
| Max. cutting width | 600mm |
| Cutting length | Unlimited |
| Auto contour cut | Camera (automatically contour cutting) |

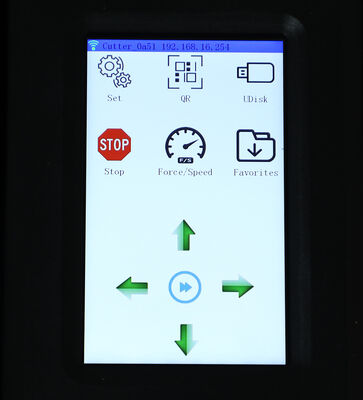

| Control panel | 5.0inch touch screen |
| Motor | High speed servo motor |
| Positoning mode | Qr code/Dot/Right angle |
| Number of heads | 2 |
| Blade type | Rowland blade |
| Packing size | L 1140mm*W 930mm*H 1130mm |
| Machine size | L 1050mm*W 1050mm*H 1200mm |
| Gross/Net weight | 222kgs/176kgs |
| Cutting accuracy | +/- 0.01mm |
| Repeatability | 0.082mm |
| Max.material thickness | 600gsm |
| Max. cutting speed | 1600mm/s |
| Max.force | 3000g |
| Connect or interface | USB cable/Udisk/web cable/WIFI |
| Power | ﹤150w |
| Working environment | ﹢5℃-﹢35℃ |
| Power supply | 100v-240v(adaptive) |
| Cutting materials | Self-adhesive sticker/coated paper/PVC |
| Support software | CDR/AI/PS/Contour software/Signmaster(optional) |
| Memory | 1G |
| Support system | All versions of windows |

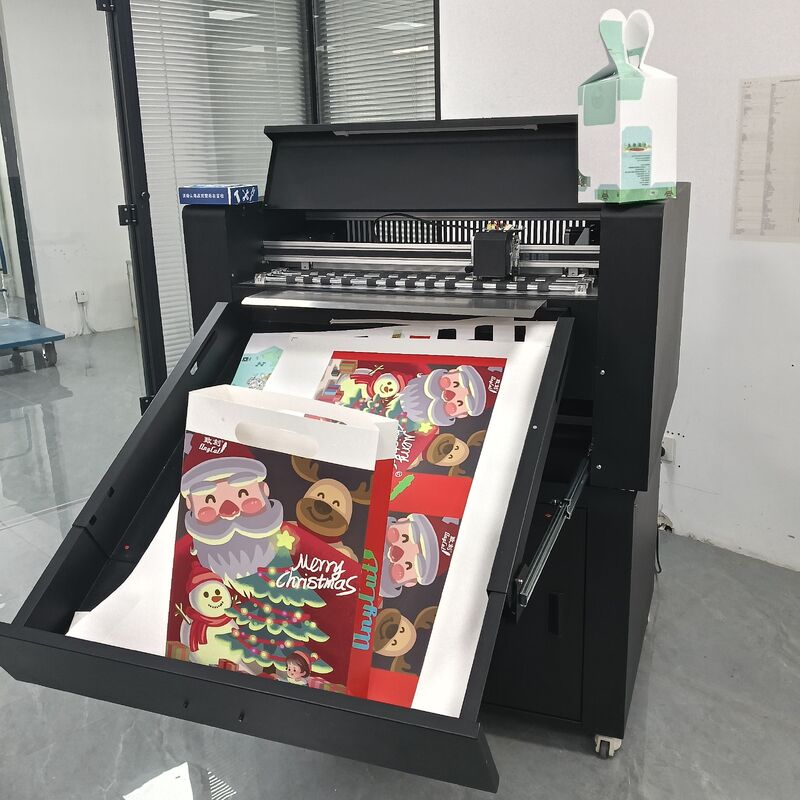

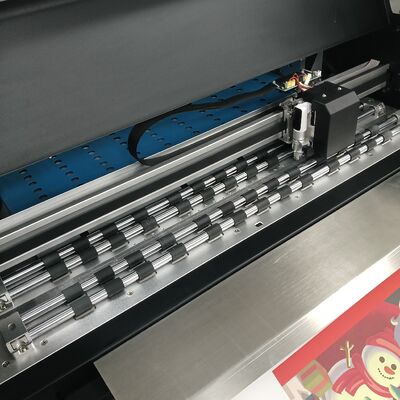

Anycut SVD600PRO_RL, automatically feeding materials by vacuum adsorption, anti-static adhesion, large paper holding house suitable for batch cutting. 3000g ultra force, rotary wheel creasing tool, maximum cutting and creasing thickness upto 600gsm. 4 rows of pressing rollers, move materials more smoothly. Maximum media width 620mm, maximum cutting width 600mm. Multi-functions such as full cut ,half cut, crease and cut at one time or half cut and full cut at one time or make dashed line.
