| Brand Name: | Anycut |
| Model Number: | ANYCUT-F6090 |
| MOQ: | 1piece |
| Price: | $2367~2789/piece |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | 1~4 pieces/2 days;5~30 pieces/15 days;31~100 pieces/20 days |

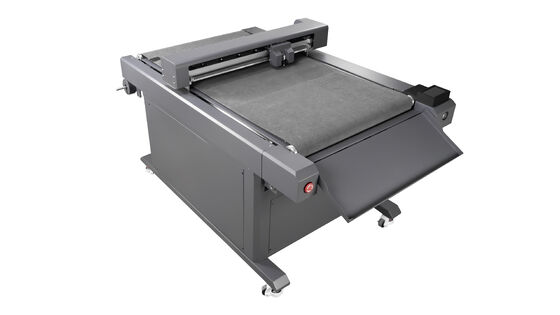

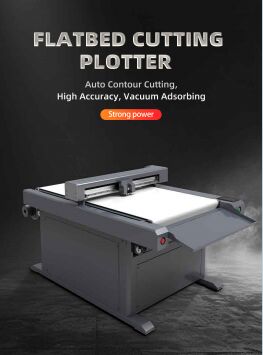

Anycut Flatbed Die Cutting Plotter Machine Dual-use Dual-head Precision Cutting Vacuum Adsorption

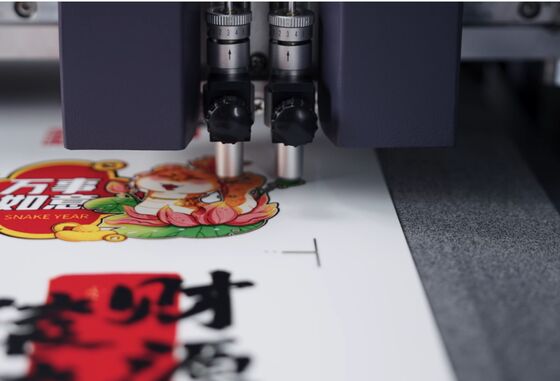

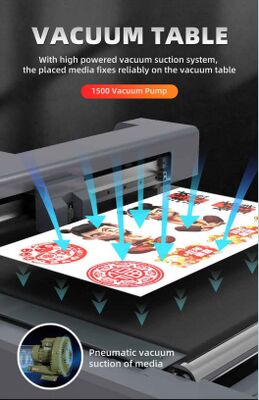

The ANYCUT-F6090 is a roll-flat dual-use dual-head precision cutting device that breaks the processing barrier between roll materials and flat materials. Based on a 60*90cm workbench, it integrates two core designs: vacuum adsorption and dual-head cutting. The vacuum adsorption table can firmly fix materials of different thicknesses (from thin self-adhesive to rigid cardboard), avoiding offset and wrinkling during cutting; the dual-head cutting system can simultaneously complete composite processes such as cutting, creasing, and brush marking, and with the automatic contour recognition function, it realizes high-precision integrated "positioning-processing" operation.
Its adaptability far exceeds that of traditional single-function machines: it can handle continuous cutting of roll materials and fine processing of flat materials, covering various materials such as specialty paper, leather, and PVC. With a cutting speed of 1200mm/s and a precision of ±0.01mm, it balances batch production efficiency and detailed texture. It also supports multi-interface connections such as WiFi, USB, and QR code recognition, paired with a 5.5-inch touch screen and 1G memory, ensuring smooth operation and compatibility with mainstream design software. Whether it is the cutting of complex patterns for advertising signs or the multi-material processing in the packaging industry, the ANYCUT-F6090, with its differentiated advantages of "roll-flat universal + dual-head precision cutting + vacuum stable adsorption", serves as an all-round tool for multi-scenario production.

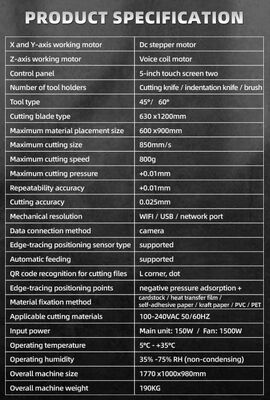

| MODEL | ANYCUT-F6090 |
| Maximum material size | 630mm*1200mm |
| Maximum cutting size | 600mm*900mm |
| Auto contour cut | Camera |

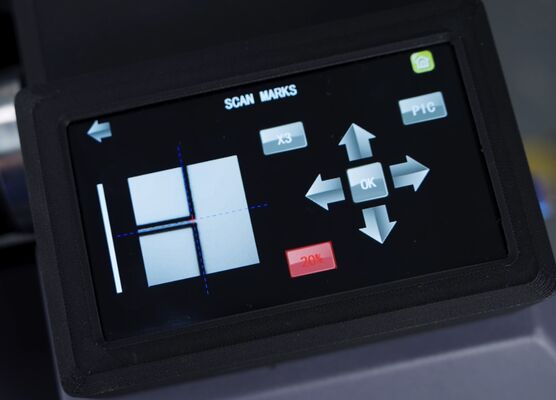

| Control panel | 5.0 inch touch screen |
| Motor | High-speed servo motor |
| Positioning mode | L-corner/dot/QR code recognition |
| Number of heads | 2 |
| Blade type | Cutting knife,indentation knife,painbrush |
| Packing size | L1620mm*W1070mm*H1150mm |
| Machine size | L1770mm*W1000mm*H980mm |
| Gross/Net weight | 190/kgs |
| Cutting accuracy | +/-0.01mm |
| Repeatability | +/-0.01mm |
| Max.material thickness | 450gsm |
| Max cutting speed | 1200mm/s |
| Max.force | 2000g |
| Connect or interface | WIFI/USB/network port/QR code recognition |
| Power | Host:150W Fan:1500w |
| Woking environment | ﹢5℃-﹢35℃ |
| Power supply | 100v-240v(adaptive) |
| Suitable cutting material | Cardboard/hot stamping film/self-adhesive/kraft paper/PVC/PET |
| Support software | CDR/AI/PS/Contour software/Signmaster(Optional) |
| Memory | 1G |
| Support system | All version of windows |
