| Brand Name: | Anycut |
| Model Number: | STD350 |
| MOQ: | 1 |
| Price: | $713~970/piece |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | 1~4 pieces/2 days;5~30 pieces/15 days;31~100 pieces/20 days |

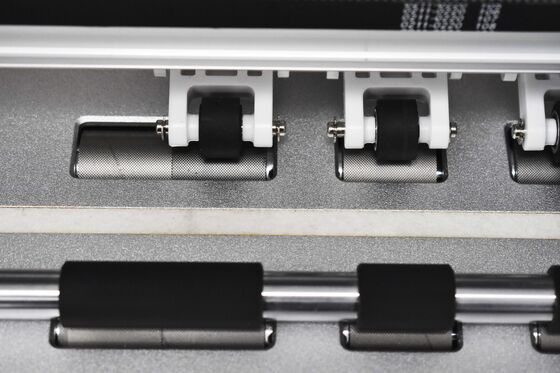

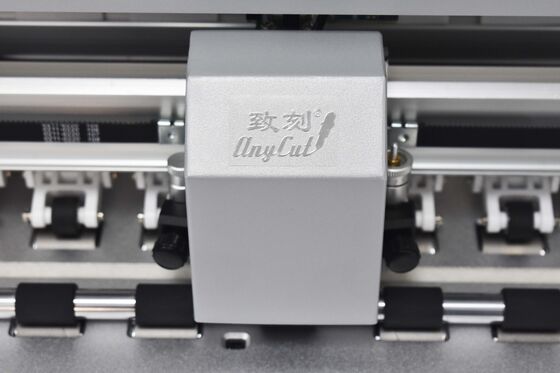

STD350 Double-head Self-adhesive Stickers Indentation Die Cutting Machine With CCD Camera
The STD350 is a versatile, high-performance die cutting machine built for precision and efficiency, featuring dual Roland blades that enable both indentation and cutting to be completed in one seamless operation. This eliminates the need for multiple processing steps, making it ideal for producing packaging, business cards, stickers, and premium paper products with crisp, professional results.
Equipped with an intelligent camera positioning system, it supports automatic contour cutting by recognizing QR codes, ensuring accurate alignment and consistent cutting paths for complex, custom designs. The 4.3-inch touchscreen control panel and flexible connectivity (USB, U-disk, WiFi) make it easy to set up and operate, while the 2000g max pressure ensures clean cuts on materials up to 450gsm, including coated paper, PVC, and self-adhesive stickers.
With a max cutting speed of 1000mm/s, ±0.01mm cutting accuracy, and 0.082mm repeatability, it delivers reliable, high-quality output for both small-batch and production-scale jobs. It is compatible with all Windows systems and industry-standard design software like CDR, AI, PS, and Contour software, making it a powerful all-in-one solution for sign shops, print businesses, and packaging manufacturers.
| MODEL | ZKSTD350 |
| Max. media width | 335mm |
| Max. cutting width | 330mm |
| Cutting length | Unlimited |
| Auto contour cut | Camera (automatically contour cutting) |
| Control panel | 4.3inch touch screen |
| Motor | Stepper motor |
| Positoning mode | Qr code/Dot/Right angle |
| Number of heads | 2 |
| Blade type | Rowland blade |
| Packing size | L 790mm*W 510mm*H 450mm |
| Machine size | L 700mm*W 425mm*H 310mm |
| Gross/Net weight | 34kgs/29kgs |
| Cutting accuracy | +/- 0.01mm |
| Repeatability | 0.082mm |
| Max.material thickness | 450gsm |
| Max. cutting speed | 1000mm/s |
| Max.force | 2000g |
| Connect or interface | USB cable/Udisk/web cable/WIFI |
| Power | ﹤150w |
| Working environment | ﹢5℃-﹢35℃ |
| Power supply | 100v-240v(adaptive) |
| Support software | CDR/AI/PS/Contour software/Signmaster(optional) |
| Memory | １Ｇ |
| Support system | All versions of windows |
