| Brand Name: | Anycut |
| Model Number: | STD350 |
| MOQ: | 1 piece |
| Price: | $713~970/piece |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | 1~4 pieces/2 days;5~30 pieces/15 days;31~100 pieces/20 days |

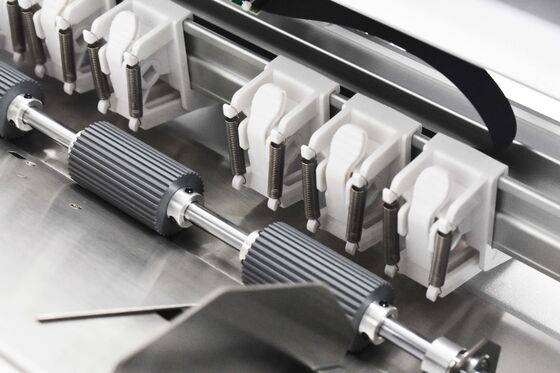

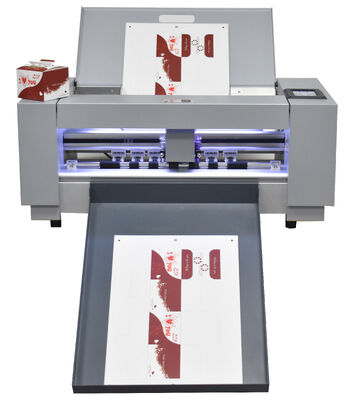

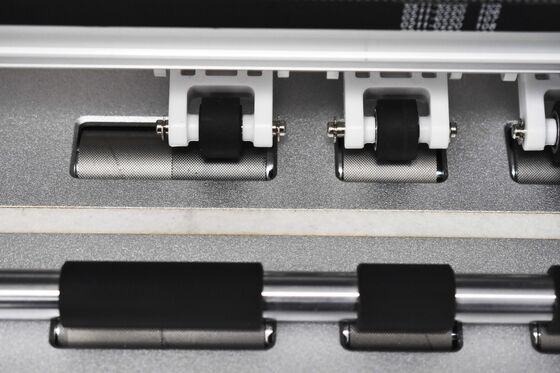

Silver A3/A4 High Precision Stepper Motor Single Head Double Row Pressure Wheel Cutting Plotter
1. High Precision & Efficiency
- Dual Cutter Heads: Delivers faster cutting speeds and enhanced efficiency, easily handling complex cutting tasks.
- Exceptional Cutting Accuracy: Boasts a precision of ±0.01mm and repeatability of 0.082mm, ensuring consistently clean and professional results.
2. Powerful & Versatile Performance
- 2000kg Super Force: Effortlessly cuts through materials up to 450gsm in thickness, accommodating a wide range of applications.
- Unlimited Cutting Length: Handles long print jobs with ease, making it ideal for both small and large production runs.
3. Smart & User-Friendly Design
- 4.3-inch Touch Screen: Provides an intuitive interface for easy operation and quick access to all functions.
- Multiple Connectivity Options: Features USB, U-disk, network cable, and Wi-Fi connections, ensuring seamless file transfer and remote control.
- QR Code File Retrieval: Simplifies workflow by allowing direct file access via QR code scanning.
4. Robust & Reliable Build
- Stepper Motor Technology: Ensures smooth, quiet, and durable operation for long-term reliability.
- Compact & Space-Saving: Its small footprint (L700mmW425mmH310mm) makes it perfect for workshops with limited space.
| MODEL | ZKSTD350 |
| Max. media width | 335mm,A4/A3/A3+ |
| Max. cutting width | 330mm |
| Cutting length | Unlimited |
| Auto contour cut | Camera (automatically contour cutting) |
| Control panel | 4.3inch touch screen |
| Motor | servo motor |
| Positoning mode | Qr code/Dot/Right angle |
| Number of heads | 1 |
| Blade type | Rowland blade |
| Packing size |
L 870mm*W 550mm*H 550mm |
| Machine size | L 700mm*W 425mm*H 310mm |
| Gross/Net weight | 42kgs/32kgs |
| Cutting accuracy | +/- 0.01mm |
| Repeatability | 0.082mm |
| Max.material thickness | 450gsm |
| Max. cutting speed | 1000mm/s |
| Max.force | 2000g |
| Connect or interface | USB cable/Udisk/web cable/WIFI |
| Power | ﹤150w |
| Working environment | ﹢5℃-﹢35℃ |
| Power supply | 100v-240v(adaptive) |
| Support software | CDR/AI/PS/Contour software/Signmaster(optional) |
| Memory | １Ｇ |
| Support system | All versions of windows |
