| Brand Name: | Anycut |
| Model Number: | ZK1750 |
| MOQ: | 1 piece |
| Price: | $742~1113/piece |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | 1~4 pieces/2 days;5~30 pieces/15 days;31~100 pieces/21 days |

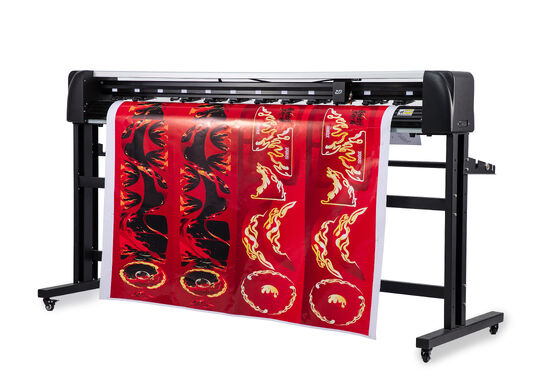

Anycut 1600mm Large Format High-precision High-pressure Stepper Motor Cutting Plotter with 700mm/s Speed
1. Powerful Cutting Force
- Equipped with a 2000g ultra-high pressure carriage, enabling precise XY-axis cutting and irregular full-cut operations.
2. Flexible Connectivity
- Features WIFI wireless connection (optional), along with USB cable and UDisk interfaces
5. High-Speed Performance
- Boasts a maximum cutting speed of 700mm/s.
6. Intelligent & User-Friendly Design
- Compatible with CDR, AI, PS, Contour, and Signmaster (optional).
Product Parameters
| MODEL | ZK1750 |
| Max. media width | 1750mm |
| Max. cutting width | 1600mm |
| Packing size | L 2110mm*W 400mm*H 440mm |
| Machine size | L 2000mm*W 600mm*H 1100mm |
| Gross/Net weight | 55kgs/49kgs |

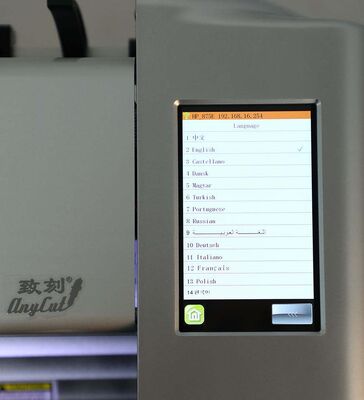

| Control panel | 5.0inch LCD touch screen |
| Motor | Micro step subdivision motor |
| Cutting length | Unlimited |
| Cutting accuracy | +/- 0.01mm |
| Repeatability | 0.082mm |
| Max.cutting speed | 700mm/s |
| Max.force | 2000g |
| Main board | ARM smart dual-core chip |
| Auto contour cut | Camera |
| Number of heads | 1 |
| Blade type | Rowland blade |
| Floorstand | yes |
| Drawing instruction | Automatic recognition DMPI and HPGL |
| Connect or interface | USB cable/Udisk/WIFI(optional) |
| Power | ﹤100w |
| Working environment | ﹢5℃﹣﹢35℃ |
| Power supply | 100v-240v(adaptive),50HZ/60HZ |
| Support software | CDR/AI/PS/Contour software/signmaster(optional) |
| Memory | 1G |
| Support system | All versions of windows |
Multi-functions
