| Brand Name: | Anycut |
| Model Number: | ZKSVD370DW |
| MOQ: | 1 piece |
| Price: | $1641~1827/piece |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | 1~4 pieces/2 days;5~30 pieces/15 days;31~100 pieces/20 days |

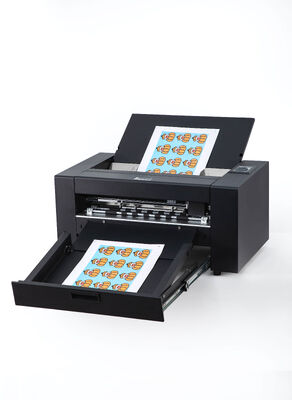

High Performace A3/A4 1600mm/s Double Heads Drawer Tray Die Cutting Machine
The ZKSVD370DW is a professional, high-performance digital cutting solution designed for precision and efficiency.
- Max Cutting Width: 340mm, ideal for handling a wide range of media sizes.
- Max Cutting Speed: 1600mm/s, powered by a high-speed servo motor for rapid production.
- Max Cutting Force: 2000g, ensuring clean and precise cuts through diverse materials.
Perfect for print shops, sign-making businesses, packaging manufacturers, and professional graphic design studios. It is the ideal choice for environments requiring high-volume, high-precision cutting operations, such as label production, custom packaging, and promotional material creation.
| MODEL | ZKSVD370DW |
| Max. media width | 370mm |
| Max. cutting width | 340mm |
| Auto contour cut | Camera (automatically contour cutting) |

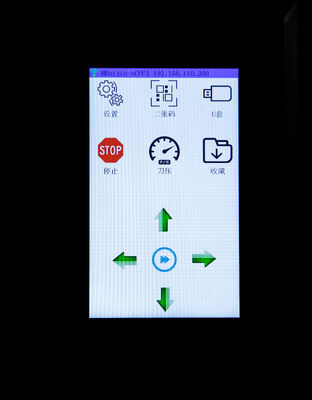

| Control panel | 4.3inch touch screen |
| Motor | High speed servo motor |
| Positoning mode | Qr code/Dot/Right angle |
| Number of heads | 2 |
| Blade type | Rowland blade |
| Packing size | L 890mm*W 580mm*H 570mm |
| Machine size | L 770mm*W 475mm*H 370mm |
| Gross/Net weight | 63kgs/47kgs |
| Cutting accuracy | +/- 0.01mm |
| Repeatability | 0.082mm |
| Max.material thickness | 450gsm |
| Max. cutting speed | 1600mm/s |
| Max.force | 2000g |
| Connect or interface | USB cable/Udisk/web cable/WIFI |
| Power | ﹤150w |
| Working environment | ﹢5℃-﹢35℃ |
| Power supply | 100v-240v(adaptive) |
| Suitable cutting material | Self-adhesive sticker/coated paper/PVC |
| Support software | CDR/AI/PS/Contour software/Signmaster(optional) |
| Memory | 1G |
| Support system | All versions of windows |
