ANYCUT-JF6090 Coil Flatbed Cutter for Custom Cards & Car Instrument Films

Brand Name: Anycut
Model Number: ANYCUT-F6090
MOQ: 1 piece
Price: $1-9999/piece
Payment Terms: T/T,Western Union
Supply Ability: 1-4 pieces：2days ;5-30 pieces：2-15 days;30-100 pieces:20 days

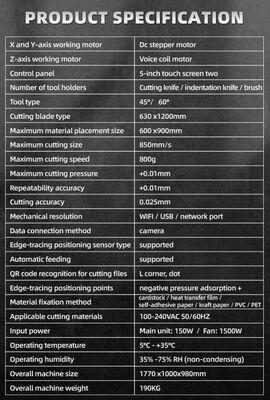

Detail Information
Product Description
Detail Information
Place of Origin:
Anhui
Certification:
CE/FCC/RoHS
Item:
Automatic Patrol Edge Vinyl Coil Flatbed Machine ANYCUT-F6090
Max.media Width:
600mm*1200mm
Max.cutting Width:
600mm*900mm
Control Panel:
5.0 Inch LCD Touch Screen
Number Of Heads:
2 Dual Knife Heads
Auto Contour Cut:
Camera(automatically Contour Cutting)
Drawing Instruction:
Automatic Recognition DMPI And HPGL
Connect Or Interface:
USB Cable/Udisk/WIFI(optional)
Support Software:
CDR/AI/PS/Contour Software/Signmaster(optional)
Motor:
1200mm/s Servo Motor
Main Board:
ARM Smart Dual-core Chip
Max Cutting Force:
2000g Heavy Duty
Packaging Details:
L1620mm*1070mm*1150mm
Supply Ability:
1-4 pieces：2days ;5-30 pieces：2-15 days;30-100 pieces:20 days
Product Description
ANYCUT-JF6090 Coil Flatbed Cutter for Custom Cards & Car Instrument Films

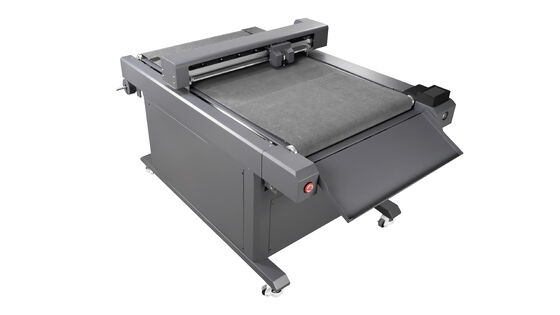

The ANYCUT-F6090 Coil Flatbed Cutting Machine:

✅ Auto Contour Cutting & High Precision Vacuum Adsorption

Equipped with a camera for automatic contour recognition and a 1500W powerful vacuum pump, it firmly fixes various roll and flat materials, ensuring zero offset and warpage during cutting, with a precision of ±0.01mm for small cards, business cards, and instrument films.

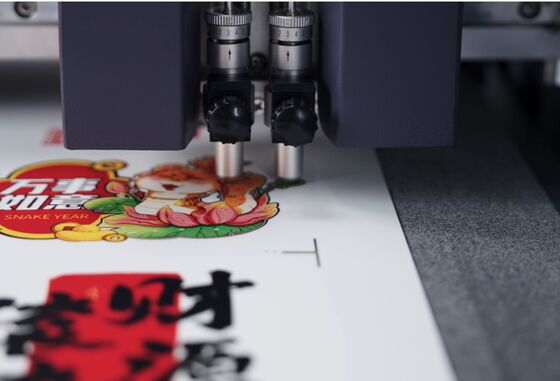

✅ Dual Cutter Head Design (Cutting + Creasing)

The dual-knife carriage can complete cutting and creasing simultaneously, eliminating secondary operations for boxes and hang tags, greatly improving post-processing efficiency for print shops.

✅ 60*90cm Large Worktable

Compatible with materials up to 630mm×1200mm (roll) and 600mm×900mm (flat), meeting the production needs of custom business cards, car instrument films, and packaging boxes, realizing multi-purpose use in one machine.

✅ High-Speed Servo Motor Drive

With a maximum cutting speed of 1200mm/s and precise positioning for L-corner/dot/QR codes, it outperforms ordinary models in batch production efficiency, ideal for high-frequency studio operations.

✅ Multi-Interface & Touchscreen Operation

Supports WIFI/USB/LAN/QR code recognition, with a 5.0-inch LCD touchscreen for intuitive control. The built-in camera directly reads files, avoiding complex computer settings, enabling quick mastery by new users.

✅ Wide Material Compatibility

Cuts cardstock, corrugated paper, self-adhesive stickers, kraft paper, PVC, PET, car instrument films, white ink heat transfer materials, and more, covering all scenarios for print shops, design studios, and creative workshops.

✅ Stable & Durable Build

190kg net weight ensures vibration-free operation, maintaining high precision during long continuous runs, reducing maintenance frequency and supporting 24/7 production.

✅ Pneumatic Vacuum Suction

External pneumatic vacuum pump provides strong adsorption with low noise, adapting to materials of different thicknesses, preventing paper jams and material displacement, and improving yield rate.


ANYCUT-JF6090 Coil Flatbed Cutter for Custom Cards & Car Instrument Films 0


ANYCUT-JF6090 Coil Flatbed Cutter for Custom Cards & Car Instrument Films 1
