| Brand Name: | Anycut |
| Model Number: | ZKSVD370DW |
| MOQ: | 1 piece |
| Price: | $1641-1827/piece |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | 1-4 pieces：2days ;5-30 pieces：2-15 days;30-100 pieces:20 days |
Anycut A3/A4 Sticker Label Cutting Machine with Automatic Feeding Flat Double-Headed
The ZKSVD370DW High-Speed Servo Motor Cutting Machine (Dual-Head Version) is a professional cutting device powered by a 600W high-speed servo motor, integrating efficiency and intelligence for diverse cutting tasks.
It features a drawer-style paper tray for convenient material handling, enabling easy full and half cuts, and automatically recognizes cutting paths via QR code for precise operation. With WiFi wireless connectivity, it offers flexible usage, and is suitable for cutting stickers, personalized business cards, card hang tags, car instrument films, special-shaped card tags, and paper boxes.
Boasting a max media width of 370mm and max cutting width of 340mm, it achieves a cutting accuracy of ±0.01mm and a max cutting speed of 1600mm/s, with dual Rowland blades for enhanced productivity. The 4.3-inch touch screen ensures intuitive control, and it supports positioning via QR code, dot, or right angle. Compatible with self-adhesive stickers, coated paper, PVC, and other materials, it works with CDR/AI/PS/Contour software (Signmaster optional) and all Windows systems. Compact in size (L870×W475×H370mm) with a gross weight of 63kgs and net weight of 47kgs, it operates at ≤150w power consumption with 1G memory, making it an ideal all-in-one cutting solution for commercial and craft applications.
| MODEL | ZKSVD370DW |
| Max. media width | 370mm |
| Max. cutting width | 340mm |
| Auto contour cut | Camera (automatically contour cutting) |

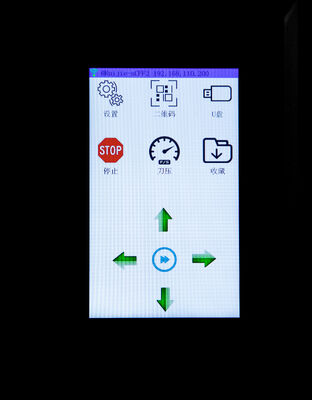

| Control panel | 4.3inch touch screen |
| Motor | High speed servo motor |
| Positoning mode | Qr code/Dot/Right angle |
| Number of heads | 2 |
| Blade type | Rowland blade |
| Packing size | L 890mm*W 580mm*H 570mm |
| Machine size | L 770mm*W 480mm*H 370mm |
| Gross/Net weight | 63kgs/47kgs |
| Cutting accuracy | +/- 0.01mm |
| Repeatability | 0.082mm |
| Max.material thickness | 450gsm |
| Max. cutting speed | 1600mm/s |
| Max.force | 1600g |
| Connect or interface | USB cable/Udisk/web cable/WIFI |
| Power | ﹤150w |
| Working environment | ﹢5℃-﹢35℃ |
| Power supply | 100v-240v(adaptive) |
| Suitable cutting material | Self-adhesive sticker/coated paper/PVC |
| Support software | CDR/AI/PS/Contour software/Signmaster(optional) |
| Memory | 1G |
| Support system | All versions of windows |
