| Brand Name: | Anycut |
| Model Number: | ZKD1000-SF |
| MOQ: | 1piece |
| Price: | $884~1113/piece |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | 1~4 pieces/2 days;5~30 pieces/ 15 days;31~100 pieces/20 days |

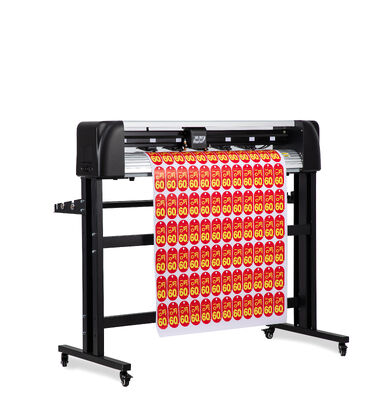

Anycut 39 Inch Dual-head Sevo Smart Cutting Plotter Intelligent Positioning Multi-Function High-Precision
The ZKD1000-SF is a multi-functional cutting machine centered on dual-head servo + intelligent positioning advantages. Equipped with dual working heads and high-speed servo motors, paired with a camera automatic positioning system, it can simultaneously complete multi-process operations (half-cut, full-cut, creasing, etc.) while accurately capturing pattern contours, enabling integrated "positioning-cutting" workflow.
Combining 2000g ultra-high pressure with ±0.01mm-level precision, it can handle delicate materials like crystal labels and PVC adhesive with high efficiency, as well as stably cut batch materials such as car stickers and labels. Its 1200mm/s high-speed operation also drastically reduces production time. Supporting multi-mode connectivity (WiFi, wired network, etc.), paired with a 5.5-inch touch screen and ARM smart dual-core mainboard, it offers smooth and user-friendly operation, and is compatible with all Windows systems and mainstream design software. It’s a "high-efficiency + precision + versatility" production tool for advertising signs, decorative materials and other fields.
| MODEL | ZKD1000-SF |
| Max. media width | 1000mm |
| Max. cutting width | 700mm |
| Packing size | L1360mm*W400mm*H440mm |
| Machine size | L1250mm*W600mm*H1100mm |
| Gross/Net weight | 36kgs/30kgs |

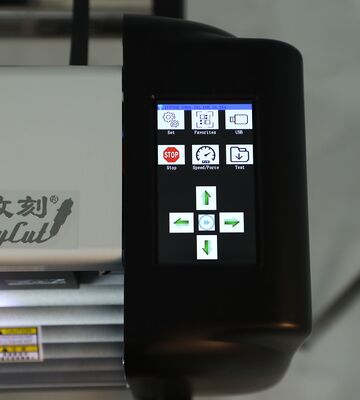

| Control panel | 5.0inch LCD touch screen |
| Motor | Servo motor |
| Cutting length | Unlimited |
| Cutting accuracy | +/- 0.01mm |
| Repeatability | 0.082mm |
| Max.cutting speed | 1200mm/s |
| Max.force | 2000g |
| Main board | ARM smart dual-core chip |
| Auto contour cut | Camera |
| Number of heads | 2 |
| Blade type | Rowland blade |
| Floorstand | yes |
| Drawing instruction | Automatic recognition DMPI and HPGL |
| Connect or interface | USB cable/Udisk/WIFI(optional)/Web cable(optional) |
| Power | ﹤100w |
| Working environment | ﹢5℃﹣﹢35℃ |
| Power supply | 100v-240v(adaptive),50HZ/60HZ |
| Support software | CDR/AI/PS/Contour software/signmaster(optional) |
| Memory | 1G |
| Support system | All versions of windows |
