| Brand Name: | Anycut |
| Model Number: | ZKD1000-SF |
| MOQ: | 1piece |
| Price: | $884~1113/piece |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | 1~4 pieces/2 days;5~30 pieces/ 15 days;31~100 pieces/20 days |

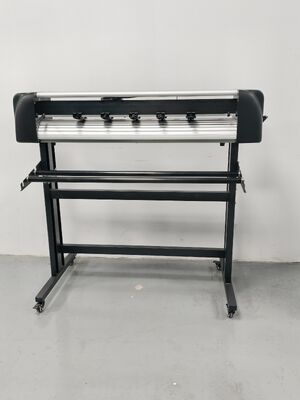

ZKD1000-SF High-Speed Double Heads 1200mm/s Stickers, Labels and Decals Contour Cutter
The ZKD1000-SF is a high-performance, dual-head cutting plotter built for high-volume, precision cutting of stickers, labels, decals, and specialty graphics.

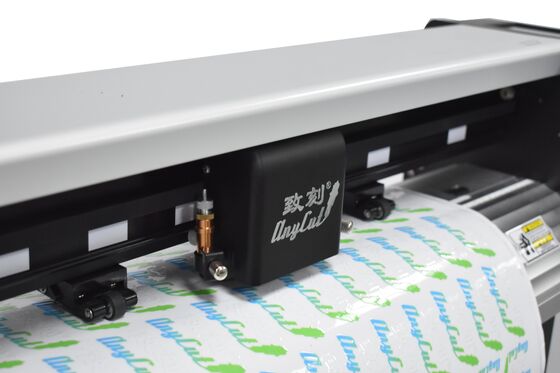

- Dual-Head & High-Speed Servo Motor:
Equipped with two Roland blades and a high-speed servo motor, it delivers a cutting speed of up to 1200mm/s.
- 2000g Max Cutting Force:
Handles a wide range of materials, with reliable half-cut, full-cut, and crease-and-cut capabilities in one pass.
- Flexible Connectivity:
Supports USB, U-disk, optional Wi-Fi, and Ethernet for seamless data transfer, making it easy to integrate into any workflow.
- User-Friendly Interface:
The 5.0-inch LCD touchscreen enables intuitive operation.
- Broad Compatibility:
Works with CDR, AI, PS, Contour, and Signmaster software, and supports all Windows operating systems for maximum flexibility.
| MODEL | ZKD1000-SF |
| Max. media width | 1000mm |
| Max. cutting width | 700mm |
| Packing size | L1360mm*W400mm*H440mm |
| Machine size | L1250mm*W600mm*H1100mm |
| Gross/Net weight | 36kgs/30kgs |
| Control panel | 5.0inch LCD touch screen |
| Motor | Servo motor |
| Cutting length | Unlimited |
| Cutting accuracy | +/- 0.01mm |
| Repeatability | 0.082mm |
| Max.cutting speed | 1200mm/s |
| Max.force | 2000g |
| Main board | ARM smart dual-core chip |
| Auto contour cut | Camera |
| Number of heads | 2 |
| Blade type | Rowland blade |
| Floorstand | yes |
| Drawing instruction | Automatic recognition DMPI and HPGL |
| Connect or interface | USB cable/Udisk/WIFI(optional)/Web cable(optional) |
| Power | ﹤100w |
| Working environment | ﹢5℃﹣﹢35℃ |
| Power supply | 100v-240v(adaptive),50HZ/60HZ |
| Support software | CDR/AI/PS/Contour software/signmaster(optional) |
| Memory | 1G |
| Support system | All versions of windows |
