Anycut Adsorption Feeding Paper Cutting Plotter CCD Camera Edge Patrol Cutting Servo Motor

Brand Name:	Anycut
Model Number:	ZKSVD370PRO
MOQ:	1 piece
Price:	$2,472-3,167/piece
Payment Terms:	T/T,Western Union
Supply Ability:	1-4 pieces：2days ;5-30 pieces：2-15 days;30-100 pieces:20 days

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen

Certification:

CE/FCC/RoHS

Suitable Cutting Material:

Adsorption Feeding Paper Cutting Plotter

Control Panel:

5.0inch Touch Screen

Motor:

High Speed Servo Motor

Auto Contour Cut:

Automatically Camera Contour Cutting

Positioning Mode:

Qr Code/Dot/Right Angle

Max. Cutting Speed:

1600mm/s

Max.force:

1600g

Packaging Details:

Host machine: L 960mm*W 960mm*H 780mm; Cabine: L 910mm*W 890mm*H 860mm

Supply Ability:

1-4 pieces：2days ;5-30 pieces：2-15 days;30-100 pieces:20 days

Highlight:

adsorption feeding paper cutter

CCD camera edge patrol cutter

servo motor cutting plotter

Product Description

Anycut Adsorption Feeding Paper Cutting Plotter CCD Camera Edge Patrol Cutting Servo Motor

The ZKSVD370PRO is a high-end intelligent die-cutting machine. Equipped with suction-type fully automatic paper feeding and a high-speed servo motor, it is a professional-grade device for processing materials such as self-adhesive stickers, personalized business cards, special-shaped cards and cartons. The suction-type paper feeding effectively eliminates static electricity to avoid material adhesion and jamming, and combined with a high cutting speed of 1600mm/s, it enables large-batch continuous cutting and greatly improves production efficiency.

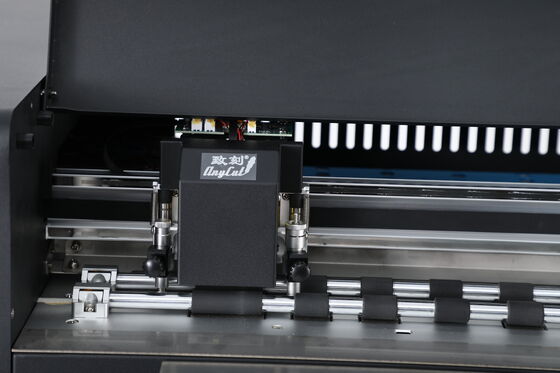

It features a 5.0-inch LCD touch screen for more convenient operation; the dual Roland cutter head design plus CCD camera for fully automatic contour cutting supports QR code, dot and right-angle positioning, with ±0.01mm cutting accuracy to accurately restore complex shapes, and 2000g pressure to cut 450gsm thick materials. It also supports WIFI wireless connection, is compatible with all Windows systems and multiple design software, and the dual-head carriage structure allows full cutting, half cutting and indentation cutting to be completed in one go. Whether for personalized customization in graphic shops or large-scale production in processing plants, it can adapt to diverse processing needs.

MODEL	ZKSVD370PRO
Max. media width	370mm
Max. cutting width	340mm
Auto contour cut	Camera (automatically contour cutting)
Control panel	5.0inch touch screen
Motor	High speed servo motor
Positoning mode	Qr code/Dot/Right angle
Number of heads	2
Blade type	Rowland blade
Packing size	Host machine: L 960mmW 960mmH 780mm; Cabine: L 910mmW 890mmH 860mm
Machine size	L 790mmW 790mmH 1200mm
Gross/Net weight	206kgs/142kgs
Cutting accuracy	+/- 0.01mm
Repeatability	0.082mm
Max.material thickness	450gsm
Max. cutting speed	1600mm/s
Max.force	1600g
Connect or interface	USB cable/Udisk/web cable/WIFI
Power	﹤150w
Working environment	﹢5℃-﹢35℃
Power supply	100v-240v(adaptive)
Suitable cutting material	Self-adhesive sticker/coated paper/PVC
Support software	CDR/AI/PS/Contour software/Signmaster(optional)
Memory	1G
Support system	All versions of windows
