| Brand Name: | Anycut |
| Model Number: | ZKJDJ330 |
| MOQ: | 1piece |
| Price: | $1479~1805/piece |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | 1~4 pieces/2 days;5~30 pieces/15 days;31~100 pieces/20 days |

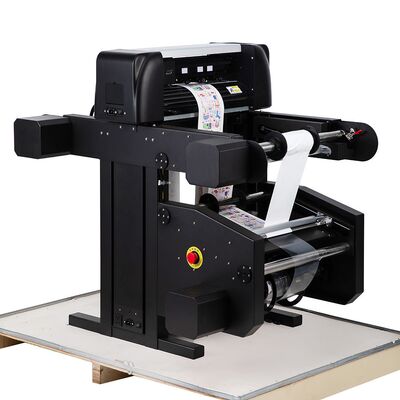

Anycut A3/a4 Roll to Roll Die Cutting Plotter Automatically Feeding Paper Discharging Waste with Adjustable Speed
The ZKJD330 is an efficient device focused on full-process automatic cutting of wide-width roll materials. With an ultra-large feeding width of 490mm to adapt to large-size roll materials, paired with the full-process automatic design of automatic feeding, collecting and waste discharging, it completely eliminates the tedious steps of manual intervention: the entire process from roll loading to finished product cutting requires no manual operation, greatly improving the efficiency and stability of batch production.
Combining a large cutting pressure of 2000g and high precision of ±0.01mm, it can stably handle flexible roll materials such as self-adhesive and labels, as well as accurately cut rigid materials like cardboard. The high-speed cutting of 1200mm/s + adjustable speed function can flexibly match the processing rhythm according to material characteristics; paired with multi-connection methods (WiFi/wired network), it can seamlessly integrate into the production network of different workshops. The 5.0-inch touch screen simplifies the debugging process, and the cutting range of "unlimited length + 330mm width" better meets the processing needs of large-size orders. Whether it is the production of wide-width labels in the packaging industry or the cutting of roll materials in the cultural and creative field, the ZKJD330, with its differentiated advantages of "wide-width adaptation + fully automatic roll cutting", serves as a powerful tool for multi-scenario batch production.
| MDEL | ZKJDJ330 |
| Media way | Auto paper feeding |

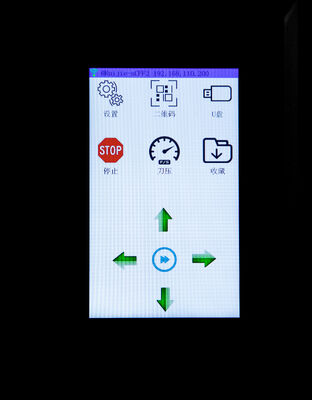

| Control panel | 5.0 inch touch screen |
| Maximum cutting width | 490mm |
| Maximum cutting area | unlimited length*330mm width |
| Cutting accuracy | +/-0.01 |
| Repeat accuracy | 0.082mm |
| Maximum cutting speed | 1200mm/s |
| Maximum cutting pressure | 2000g |
| Connect or interface | USB cable/Udisk/web cable/WIFI |
| Input voltage | 110v-240v |
| Machine power | < 100W |
| wroking temperature | +5°C ---- +35°C |
| Packing size | L1330*W980*H1270mm |
| Gross Weight | 133kgs |
