| Brand Name: | Anycut |
| Model Number: | ZKJDJ330 |
| MOQ: | 1piece |
| Price: | $1479~1805/piece |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | 1~4 pieces/2 days;5~30 pieces/15 days;31~100 pieces/20 days |

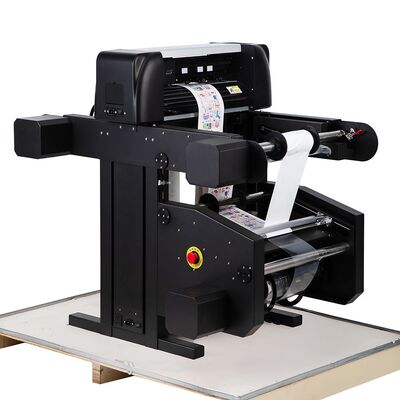

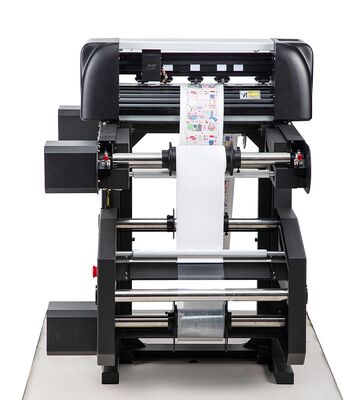

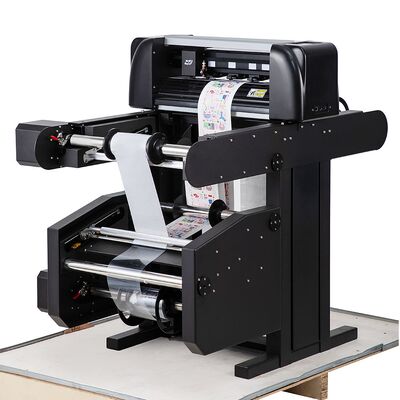

ZKJDJ330 Auto Feeding/picking Up Roll To Roll Paper Die Cutting Machine with Multiple Interfaces
Boasts the max cutting width is 490mm and cutting area is 330mm,and a maximum cutting speed of 1200mm/s, delivering professional-grade results at high efficiency.
Ideal for processing roll-fed self-adhesive stickers, PET transparent self-adhesive stickers, and other popular label and sticker materials.
Features a 5.0-inch touchscreen control panel and multiple connectivity options (USB, U-disk, network cable, WIFI) for seamless integration into modern production lines.

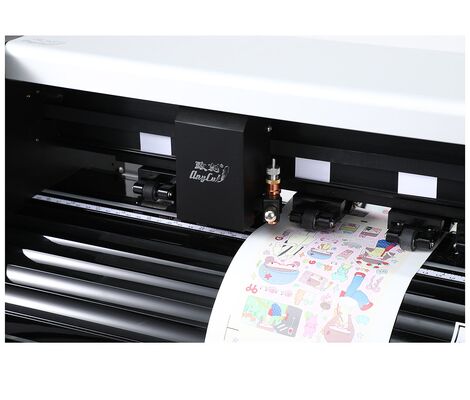

Equipped with a maximum cutting pressure of 2000g and an auto contour cut function with a camera, enabling precise cutting of complex shapes and printed graphics.
Sturdy construction with a gross weight of 133kgs ensures stability and longevity in high-volume environments.

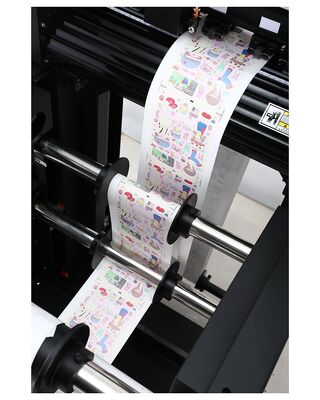

Automatically feeds, cuts, collects finished materials, and discharges waste, eliminating manual labor and streamlining production.
Product Parameters
| Model | ZKJDJ330 |
| Media way | Auto paper feeding |
| Control Panel | 4.3inch touch screen |
| Maximum material width | 490mm |
| Maximum cutting area | unlimited length*330mm width |
| Cutting accuracy | +/-0.01mm |
| Repeat accuracy | 0.082 mm |
| Maximum cutting speed | 1200mm/s |
| Maximum Cutting pressure | 2000g |
| Connect or interface | USB cable/Udisk/web cable/WIFI |
| Input voltage | 110V-240v |
| Machine power | < 100W |
| Working temperature | +5°C ---- +35°C |
| Packing size | L 1330*W 980*H 1250mm |
| Gross weight | 47kgs |
