| Brand Name: | Anycut |
| Model Number: | ANYCUT-ZKF3550 |
| MOQ: | 1piece |
| Price: | $1240~1522/piece |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | 1~4 pieces/2 days;5~30 pieces/15 days;31~100 pieces/20 days |

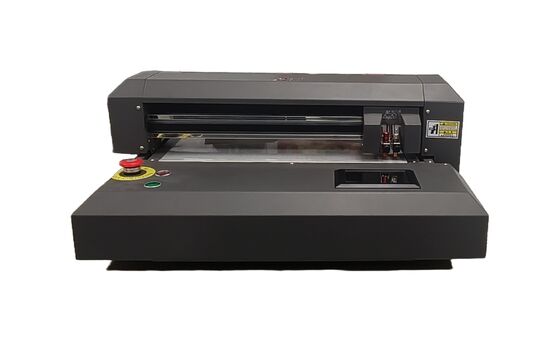

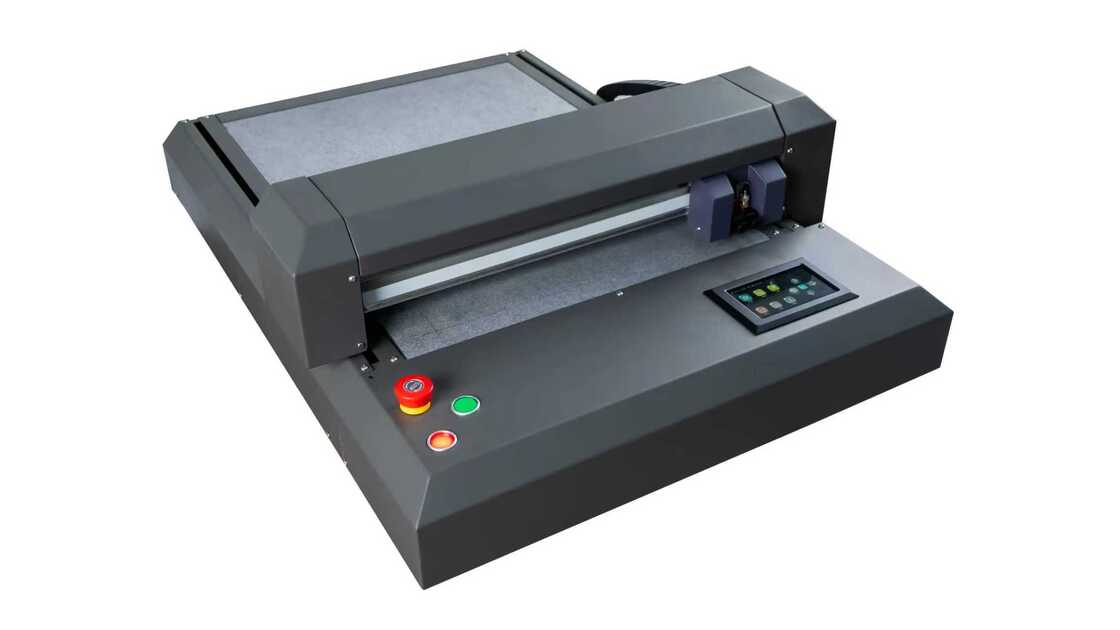

Anycut Flatbed Die Cutting Plotter Machine Desktop Vacuum-stable Adsorption Intelligent Positioning

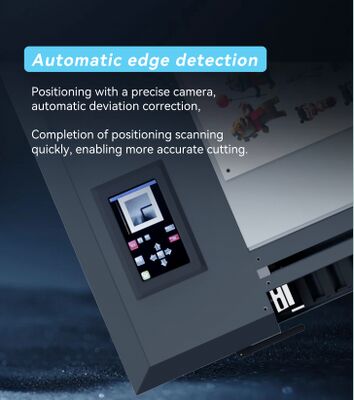

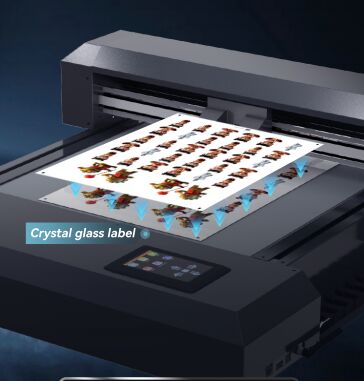

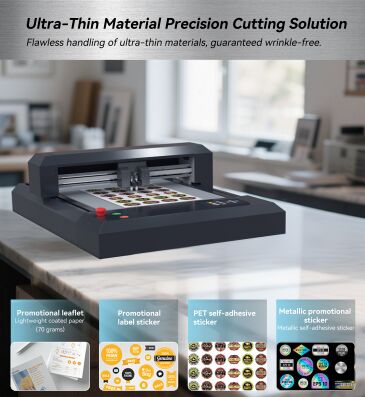

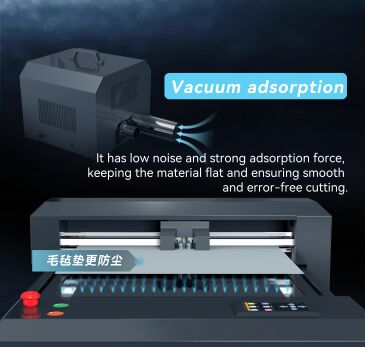

The ANYCUT-ZKF3550 is an intelligent flatbed cutter designed specifically for desktop-level fine processing. Its compact desktop body is suitable for small workshops and studio scenarios, while integrating three core advantages: First, vacuum adsorption technology paired with precise camera positioning can firmly fix thin and soft materials (such as self-adhesive and specialty paper), and avoid offset when cutting rigid cardboard and leather, achieving ±0.01mm-level high-precision processing. Second, the dual-head cutting system supports composite processes (cutting, creasing, brush marking, etc.), adapting to thicker and harder diverse materials, covering processing needs such as personalized business cards, cardboard tags, and cartons. Third, the intelligent CNC screen + multi-interface (WiFi/USB/network port) design ensures simple operation and compatibility with mainstream design software, allowing quick production without complex debugging.
With a cutting speed of 1200mm/s, it balances the efficiency of small-batch orders; meanwhile, 1G memory and full Windows system compatibility enable the device to run complex pattern files stably. From the cutting of personalized materials in cultural and creative studios to the small-batch label processing in small packaging factories, the ANYCUT-ZKF3550, with its differentiated advantages of "desktop portability + vacuum stable adsorption + intelligent positioning precision cutting", serves as a high-efficiency tool for small-scenario production.
| MODEL | ANYCUT-ZKF3550 |
| Maximum material size | 480mm*675mm |
| Maximum cutting size | 350mm*500mm |
| Auto contour cut | Camera |
| Control panel | 5.0 inch touch screen |
| Motor | DC servo motor |
| Positioning mode | L-corner/dot/QR code recognition/support multi-file mixing |
| Number of heads | 2 |
| Blade type | Cutting knife,indentation knife,painbrush |
| Packing size | L1430mm*W755mm*H480mm |
| Machine size | L940mm*W690mm*H290mm |
| Gross/Net weight | 35kgs |
| Cutting accuracy | +/-0.01mm |
| Repeatability | +/-0.01mm |
| Max.material thickness | 450gsm |
| Max cutting speed | 1200mm/s |
| Max.force | 2000g |
| Connect or interface | WIFI/USB/network port |
| Power | Host:120W Fan:1000w |
| Woking environment | ﹢5℃-﹢35℃ |
| Power supply | 100v-240v(adaptive) |
| Suitable cutting material | Cardboard/hot stamping film/self-adhesive/kraft paper/PVC/PET |
| Support software | CDR/AI/PS/Contour software/Signmaster(Optional) |
| Memory | 1G |
| Support system | All version of windows |
