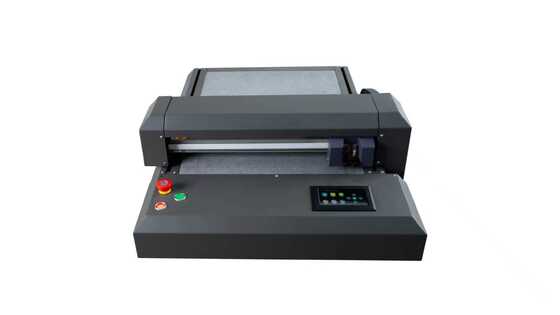

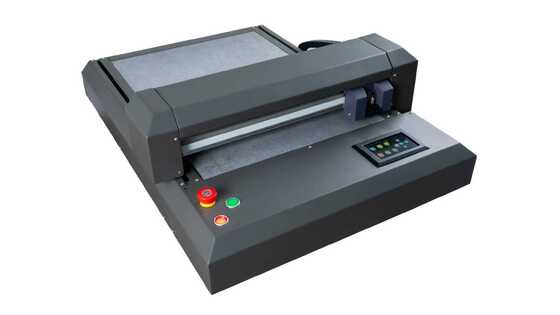

Anycut-F3550 1200mm/s Vacuum Adsorption Desktop Flatbed Cutter With Multiple Connections
Maximum material thickness of 450gsm, and a maximum cutting speed of 1200mm/s.
With a gross weight of 81kgs, it combines a sturdy build with a space-saving tabletop design, ideal for small to medium production environments.

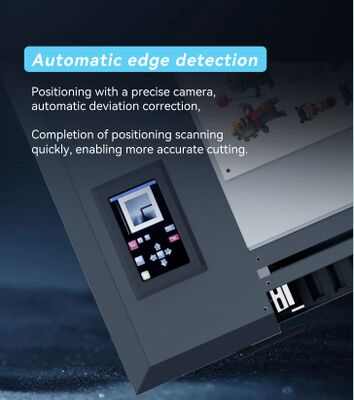

Equipped with a 5.0-inch touchscreen control panel and an accurate camera for auto contour cutting, automatic skew correction, and L-corner/dot/QR code recognition, ensuring professional-grade results.
Features a double-head cutting trolley with two tool heads (cutting knife, indentation knife, paintbrush), boosting productivity and supporting multi-task cutting in one pass.
Supports multiple connection methods including WIFI, USB, U-disk, and network port, for seamless integration into modern workflows.
Works with all versions of Windows and supports design software such as CorelDRAW, AI, PS, Contour software, and Signmaster (optional).

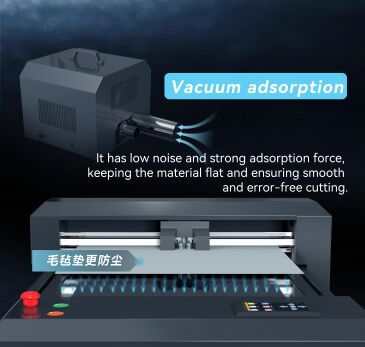

Uses vacuum adsorption technology to securely hold materials, enabling stable cutting of thicker, thinner, and smoother materials like cardboard, hot stamping foil, self-adhesive, kraft paper, PVC, and PET.
Product Parameters
| MODEL | ANYCUT-F3550 |
| Max. media width | 480mm×675mm |
| Max. cutting width | 350mm×500mm |
| Packing size | L 1430mm*W 755mm*H 480mm |
| Machine size | L 940mm*W 690mm*H 290mm |
| Gross/Net weight | 81kgs/61kgs |

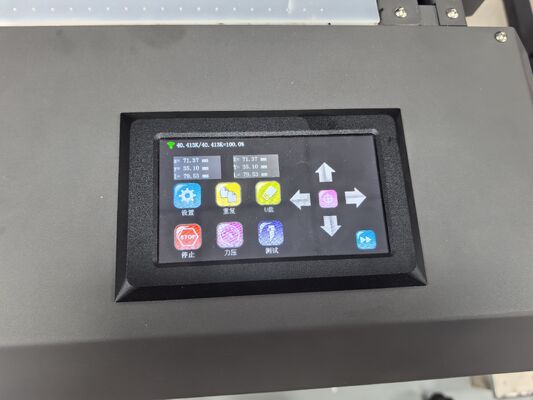

| Control panel | 5.0inch LCD touch screen |
| auto contour cut | camera |
| Cutting length | Unlimited |
| Cutting accuracy | +/- 0.01mm |
| Repeatability | 0.082mm |
| Max.cutting speed | 1200mm/s |
| Max.force | 2000g |
| Main board | Cardboard/hot stamping film/self-adhesive/kraft paper/PVC/PET |
| Auto contour cut | Camera |
| max material thickness | 450gsm |
| Blade type | cutting knife,indentation knife,painbrush |
| Floorstand | yes |
| Drawing instruction | Automatic recognition DMPI and HPGL |
| Connect or interface | USB /WIFI/network port |
| Power | ﹤100w |
| Working environment | ﹢5℃﹣﹢35℃ |
| Power supply | 100v-240v(adaptive) |
| Support software | CDR/AI/PS/Contour software/signmaster(optional) |
| Memory | 1G |
| Support system | All versions of windows |
