| Brand Name: | Anycut |
| Model Number: | ZK1000 |
| MOQ: | 1 piece |
| Price: | $456~685/piece |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | 1~4 pieces/2 days;5~30 pieces/15 days;31~100 pieces/20 days |

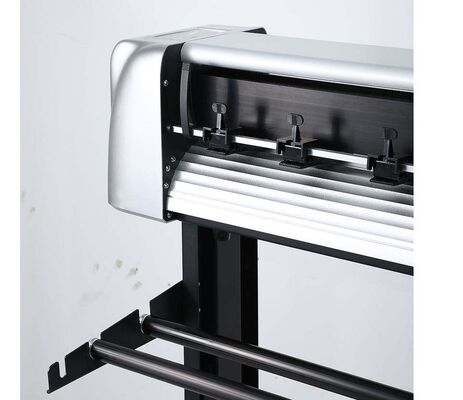

Super Force 1000mm Stepper Motor Automatically Correct Large Pictures Die Cutting Machine with 5.0 Inch Touch Screen
The ZK1000 is a heavy-duty, high-performance cutting plotter engineered for professional sign-making, sticker production, and industrial-grade material processing. Its standout feature is camera automatic positioning, which precisely detects registration marks for accurate contour cutting of pre-printed designs—perfect for intricate stickers, decals, and heat transfers.
With an impressive 2000g super force, it effortlessly cuts through ultra-thick materials like reflective film, cardboard, and heat transfer vinyl, making it ideal for demanding industrial applications. The machine supports WiFi wireless connection for flexible remote operation and features a 5.0-inch LCD touch screen for intuitive control. Its automatic deviation correction ensures large-format jobs up to 10 meters stay perfectly aligned, eliminating waste and rework.
Boasting a maximum media width of 1000mm and a cutting speed of 700mm/s, the ZK1000 combines speed with precision (±0.01mm cutting accuracy). Powered by an ARM smart dual-core chip and a micro-step subdivision motor, it delivers consistent, reliable performance even under heavy use. It comes with a sturdy floor stand and is compatible with all Windows systems, plus industry-standard software like SignMaster. Whether you’re processing reflective signage, stencils, or thick heat transfer materials, the ZK1000 is built to handle your most challenging cutting tasks.
| MODEL | ZK1000 |
| Max. media width | 1000mm |
| Max. cutting width | 850mm |
| Packing size | L1360mm*W400mm*H440mm |
| Machine size | L1250mm*W 600mm*H1100mm |
| Gross/Net weight | 36kgs/30kgs |
| Control panel | 5.0inch LCD touch screen |
| Motor | Micro step subdivision motor |
| Cutting length | Unlimited |
| Cutting accuracy | +/- 0.01mm |
| Repeatability | 0.082mm |
| Max.cutting speed | 700mm/s |
| Max.force | 2000g |
| Main board | ARM smart dual-core chip |
| Auto contour cut | Camera |
| Number of heads | 1 |
| Blade type | Rowland blade |
| Floorstand | yes |
| Drawing instruction | Automatic recognition DMPI and HPGL |
| Connect or interface | USB cable/Udisk/WIFI(optional) |
| Power | ﹤100w |
| Working environment | ﹢5℃﹣﹢35℃ |
| Power supply | 100v-240v(adaptive),50HZ/60HZ |
| Support software | CDR/AI/PS/Contour software/signmaster(optional) |
| Memory | 1G |
| Support system | All versions of windows |
