| Brand Name: | Anycut |
| Model Number: | ZK1400 |
| MOQ: | 1 piece |
| Price: | $528~753/piece |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | 1~4 pieces/2 days;5~31 pieces/15 days;31~100 pieces/20 days |

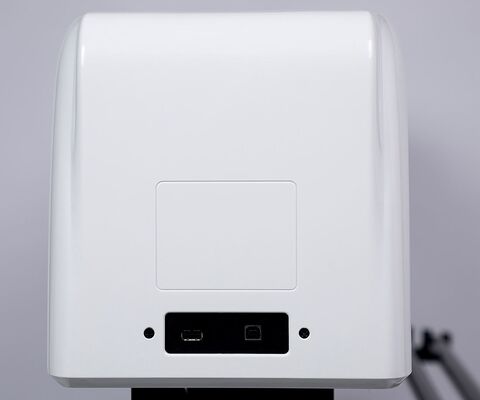

ZK1400 Super Thick Roll Materials Stepper Motor Large Format Graphic Plotter
The ZK1400 is a large-format, industrial-grade cutting plotter built to handle high-volume, heavy-duty cutting tasks with precision and reliability. Its core feature is camera automatic positioning, which accurately detects registration marks for precise contour cutting of pre-printed designs—ideal for producing large stickers, decals, signage, and custom graphics.
With an impressive 2000g super force, it easily cuts through ultra-thick materials including PVC adhesive, white inkjet media, light box panels, and reflective films. The machine supports WiFi wireless connection for flexible remote operation, and its 5.0-inch LCD touch screen provides intuitive control. Its automatic deviation correction ensures even 10-meter-long jobs stay perfectly aligned, minimizing waste and maximizing efficiency.
Boasting a maximum media width of 1400mm and a cutting speed of 700mm/s, the ZK1400 combines speed with exceptional precision (±0.01mm cutting accuracy). Powered by an ARM smart dual-core chip and a micro-step subdivision motor, it delivers consistent performance even under continuous use. It features a stable floor stand and is compatible with all Windows systems, plus industry-standard software like SignMaster. Whether you’re producing large-format signage, vehicle graphics, or industrial stencils, the ZK1400 is engineered to tackle your most demanding cutting projects.
| MODEL | ZK1400 |
| Max. media width | 1400mm |
| Max. cutting width | 1250mm |
| Packing size | L1760mm*W400mm*H440mm |
| Machine size | L1650mm*W600mm*H1100mm |
| Gross/Net weight | 42kgs/36kgs |
| Control panel | 5.0inch LCD touch screen |
| Motor | Micro step subdivision motor |
| Cutting length | Unlimited |
| Cutting accuracy | +/- 0.01mm |
| Repeatability | 0.082mm |
| Max.cutting speed | 700mm/s |
| Max.force | 2000g |
| Main board | ARM smart dual-core chip |
| Auto contour cut | Camera |
| Number of heads | 1 |
| Blade type | Rowland blade |
| Floorstand | yes |
| Drawing instruction | Automatic recognition DMPI and HPGL |
| Connect or interface | USB cable/Udisk/WIFI(optional) |
| Power | ﹤100w |
| Working environment | ﹢5℃﹣﹢35℃ |
| Power supply | 100v-240v(adaptive),50HZ/60HZ |
| Support software | CDR/AI/PS/Contour software/signmaster(optional) |
| Memory | 1G |
| Support system | All versions of windows |
