| Brand Name: | Anycut |
| Model Number: | ZK1400 |
| MOQ: | 1 piece |
| Price: | $528~753/piece |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | 1~4 pieces/2 days;5~31 pieces/15 days;31~100 pieces/20 days |

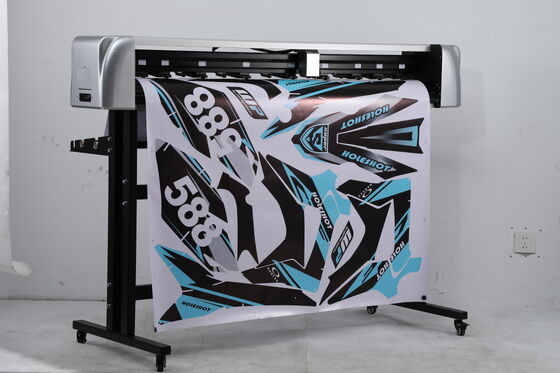

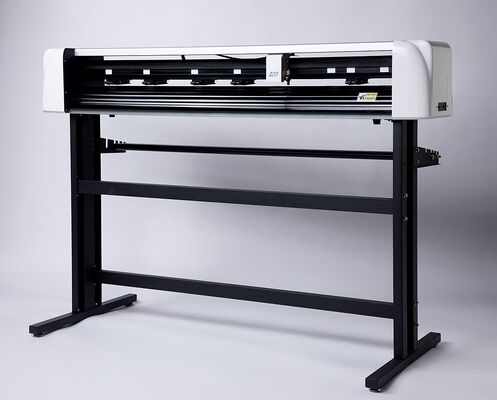

Anycut 55 Inch High-pressure Cutting Plotter XY-axis Cutting and Irregular Full-cut Die Cutting Machine
Details Display
1. High Performance
- Maximum cutting speed of 700mm/s for efficient production.
- The maximum cutting width 1250mm.
2. Superior Cutting Force
- 2000g ultra-high pressure carriage enables XY-axis cutting and irregular full-cut, handling a wide range of materials with precision.
3. Advanced Connectivity
- WIFI wireless connection (optional) for seamless operation, alongside USB and Udisk interfaces for flexible data transfer.
4. Precision & Reliability
- Automatic contour correction ensures deviation-free cutting for large images up to 10 meters.
- Unlimited maximum cutting length.
5. User-Friendly Design
- Compatible with all versions of Windows and professional design software (CDR, AI, PS, Contour, Signmaster).
Product Paramenters
| MODEL | ZK1400 |
| Max. media width | 1400mm |
| Max. cutting width | 1250mm |
| Packing size | L 1760mm*W 400mm*H 440mm |
| Machine size | L 1650mm*W 600mm*H 1100mm |
| Gross/Net weight | 42kgs/36kgs |
| Control panel | 5.0inch LCD touch screen |
| Motor | Micro step subdivision motor |
| Cutting length | Unlimited |
| Cutting accuracy | +/- 0.01mm |
| Repeatability | 0.082mm |
| Max.cutting speed | 700mm/s |
| Max.force | 2000g |
| Main board | ARM smart dual-core chip |
| Auto contour cut | Camera |
| Number of heads | 1 |
| Blade type | Rowland blade |
| Floorstand | yes |
| Drawing instruction | Automatic recognition DMPI and HPGL |
| Connect or interface | USB cable/Udisk/WIFI(optional) |
| Power | ﹤100w |
| Working environment | ﹢5℃﹣﹢35℃ |
| Power supply | 100v-240v(adaptive),50HZ/60HZ |
| Support software | CDR/AI/PS/Contour software/signmaster(optional) |
| Memory | 1G |
| Support system | All versions of windows |
