ZKD1500-SF Industrial Large Format Cutting Plotter 59 Inch Featuring 2000g Pressure

Brand Name:	Anycut
Model Number:	ZKD1500-SF
MOQ:	1 piece
Price:	$1142-1399/piece
Payment Terms:	T/T,Western Union
Supply Ability:	1-4 pieces：2days ;5-30 pieces：2-15 days;30-100 pieces:20 days

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen

Certification:

CE/FCC/RoHS

Item:

Automatic Patrol Edge Vinyl Cutting Plotter ZKD1500-SF

Max.media Width:

1500mm

Max.cutting Width:

1200mm

Number Of Heads:

Drawing Instruction:

Automatic Recognition DMPI And HPGL

Workflow Connectivity WiFi Cloud Transfer + USB 2.0:

USB 2.0,U Disk,WiFi Cloud Transfer(optional),Web Cable(optional)

Support Software:

CDR/AI/PS/Contour Software/signmaster(optional)

Memory:

Cutting Technology:

High-Speed Servo Motor Drive

Main Board:

ARM Smart Dual-core Chip

Contour Cutting Accuracy:

0.01mm With Camera Auto-Align

Operational Ease:

5.0inch LCD Touchscreen Interface

Multi-Function Capability:

Full Cut / Half Cut / Creasing / Kiss Cut In One Pass

Industry Application:

Sign Making, Packaging Prototyping, Retail Displays, Vehicle Wraps

Productivity Boost:

Dual Independent Heads (80% Faster Than Single-Head Models)

Packaging Details:

L1810mm*400mm*440mm

Supply Ability:

1-4 pieces：2days ;5-30 pieces：2-15 days;30-100 pieces:20 days

Highlight:

59 inch industrial cutting plotter

large format plotter 2000g pressure

ZKD1500-SF cutting plotter

Product Description

ZKD1500-SF Industrial Large Format Cutting Plotter 59 Inch Featuring 2000g Pressure

Tired of slow, error-prone cutting that bottlenecks your sign shop or print business? The Anycut ZKD1500-SF dual-head servo plotter solves your biggest pain points—so you can take on more orders and boost profits.

With 1200mm/s cutting speed and 2000g of force, it slices through reflective vinyl, corrugated board, and foam board in half the time of standard plotters. The built-in camera auto-positions for contour cutting, eliminating manual alignment mistakes that waste material and hours of rework.

Dual independent heads let you run two jobs at once or switch between full cut, half cut, and creasing in a single pass—ideal for stickers, packaging prototypes, and retail displays. WiFi connectivity means you send jobs remotely from your design station, while the 5-inch touchscreen keeps operations simple for your team.

Stop settling for underperforming equipment. The ZKD1500-SF is built to handle high-volume production, reduce turnaround times, and help you deliver perfect cuts every time.

1.Eliminate Rework with Camera Auto-Positioning
No more manual alignment errors—cuts complex graphics with 0.01mm precision, saving material and labor costs.
2.Double Output with Dual-Head Design
Run two jobs simultaneously or combine cut/crease in one pass, boosting productivity by up to 80% vs. single-head competitors.
3.Cut Thick Materials Without Compromise
2000g force handles 3mm KT board and reflective film—no more struggling with flimsy, low-force plotters.
4.Remote, Smart Workflow
WiFi connectivity lets you send jobs from your desk, reducing downtime and keeping your team focused on production.

MODEL	ZKD1500-SF
Max. media width	1500mm
Max. cutting width	1200mm
Packing size	L 1810mmW 400mmH 440mm
Machine size	L 1700mmW 600mmH 1100mm
Gross/Net weight	50kgs/42kgs

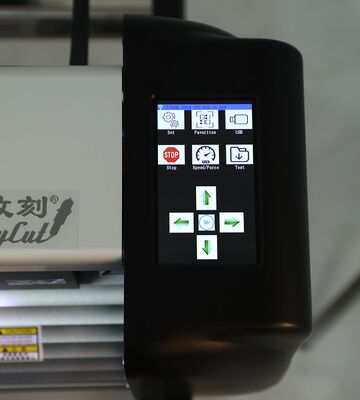

Operational Ease	5.0inch LCD Touchscreen Interface
Cutting Technology	High-Speed Servo Motor Drive
Cutting length	Unlimited
Contour Cutting Accuracy	+/-0.01mm with Camera Auto-Align
Repeatability	0.082mm
Max.cutting speed	1200mm/s
Max.force	2000g
Main board	ARM smart dual-core chip
Auto contour cut	Camera
Number of heads	2
Blade type	Rowland blade
Floorstand	yes
Drawing instruction	Automatic recognition DMPI and HPGL
Connect or interface	USB cable/Udisk/WIFI(optional)/Web cable(optional)
Multi-Function Capability	Full Cut / Half Cut / Creasing / Kiss Cut in One Pass
Industry Application	Sign Making, Packaging Prototyping, Retail Displays, Vehicle Wraps
Power	﹤100w
Working environment	﹢5℃﹣﹢35℃
Power supply	100v-240v(adaptive),50HZ/60HZ
Support software	CDR/AI/PS/Contour software/signmaster(optional)
Memory	1G
Support system	All versions of windows
