| Brand Name: | Anycut |
| Model Number: | ZKD1500-SF |
| MOQ: | 1piece |
| Price: | $1070~1398/piece |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | 1~4 pieces/2 days;5~30 pieces/15 days;31~100 pieces/20 days |

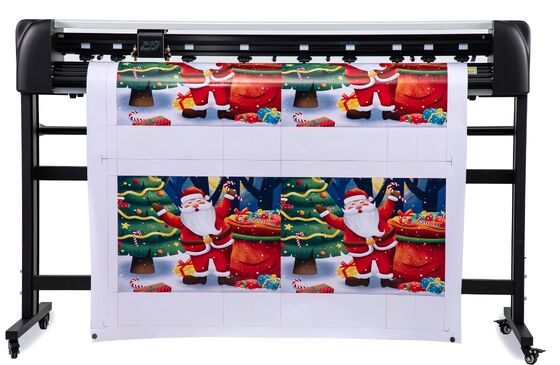

Anycut 59 Inch Dual-Head Servo Smart Cutting Plotter Intelligent Positioning High-Pressure Multi-Function
The ZKD1500-SF is a high-speed multi-process cutting machine featuring dual-head servo dual-effect + intelligent visual precision control. Equipped with dual working heads and a high-speed servo motor, paired with a camera automatic positioning system, it can simultaneously complete composite processes (half-cut, full-cut, creasing, etc.), enabling an integrated and efficient "positioning-processing" workflow. It eliminates the time spent on process switching with single-head equipment, while combining 2000g ultra-high pressure and ±0.01mm-level precision to balance the cutting quality of delicate materials (such as reflective film and wall stickers) and the production efficiency of batch materials (such as car stickers and signs).

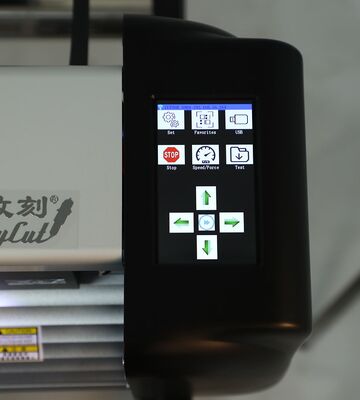

With a high operating speed of 1200mm/s and dual connectivity (WiFi/wired network), the machine adapts to the network environments of different workshops. The combination of a 5.5-inch touch screen and an ARM smart dual-core mainboard not only simplifies the operation process but also supports all Windows systems and mainstream design software. From the refined production of advertising signs to the mass processing of decorative materials, the ZKD1500-SF, with its core advantages of "dual-head fast cutting + intelligent positioning precision control", serves as a high-efficiency tool for multi-scenario production.
| MODEL | ZKD1500-SF |
| Max. media width | 1500mm |
| Max. cutting width | 1200mm |
| Packing size | L1810mm*W400mm*H440mm |
| Machine size | L1700mm*W600mm*H1100mm |
| Gross/Net weight | 50kgs/42kgs |
| Control panel | 5.0inch LCD touch screen |
| Motor | Servo motor |
| Cutting length | Unlimited |
| Cutting accuracy | +/- 0.01mm |
| Repeatability | 0.082mm |
| Max.cutting speed | 1200mm/s |
| Max.force | 2000g |
| Main board | ARM smart dual-core chip |
| Auto contour cut | Camera |
| Number of heads | 2 |
| Blade type | Rowland blade |
| Floorstand | yes |
| Drawing instruction | Automatic recognition DMPI and HPGL |
| Connect or interface | USB cable/Udisk/WIFI(optional)/Web cable(optional) |
| Power | ﹤100w |
| Working environment | ﹢5℃﹣﹢35℃ |
| Power supply | 100v-240v(adaptive),50HZ/60HZ |
| Support software | CDR/AI/PS/Contour software/signmaster(optional) |
| Memory | 1G |
| Support system | All versions of windows |
