| Brand Name: | Anycut |
| Model Number: | ZK1400-SF |
| MOQ: | 1 piece |
| Price: | $670~999/piece |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | 1~4 pieces/2 days;5~30 pieces/15 days;31~100 pieces/20 days |

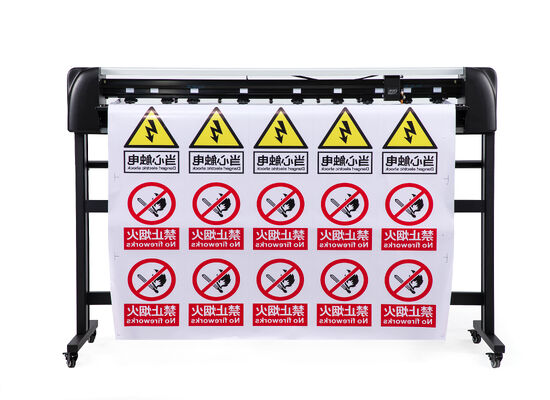

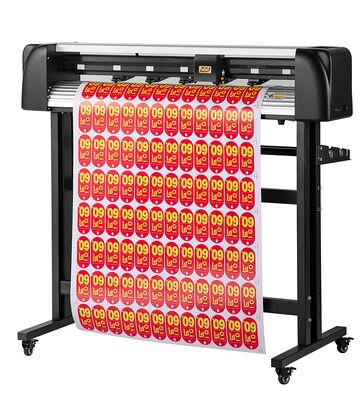

Anycut 55 Inch Servo Smart Cutting Plotter Camera Auto-positioning High Speed Precision Cutting
The ZK1400-SF is an intelligent cutting tool tailored for complex material processing, boasting three core upgraded advantages: precision, efficiency, and flexibility. Equipped with a high-definition CCD camera, it captures details clearly even on reflective materials; paired with camera automatic positioning, millimeter-level accuracy is no longer limited by material properties. Its built-in suction-assisted paper feeding design eliminates material shifting and wrinkling, ensuring stability during high-speed cutting. With a 1200mm/s cutting speed and 2000g high pressure, it balances efficiency and the ability to proces6s hard media.
What makes it more user-friendly is its layout flexibility: free switching between irregular and set-based layouts, plus customizable marker points (color, distance, shape). During batch processing, it adapts to irregular materials while supporting one-click standardized production. The built-in servo motor enables ultra-quiet operation; dual WiFi/wired network connectivity frees users from cable constraints; and the ARM smart dual-core main control ensures smooth, lag-free operation. From reflective signs to irregular stickers, from batch cardstock to film processing, it meets personalized needs across scenarios with "visible precision, controllable flexibility, and quiet efficiency."
| MODEL | ZK1400-SF |
| Max. media width | 1400mm |
| Max. cutting width | 1250mm |
| Packing size | L1760mm*W400mm*H440mm |
| Machine size | L1650mm*W600mm*H1100mm |
| Gross/Net weight | 42kgs/36kgs |

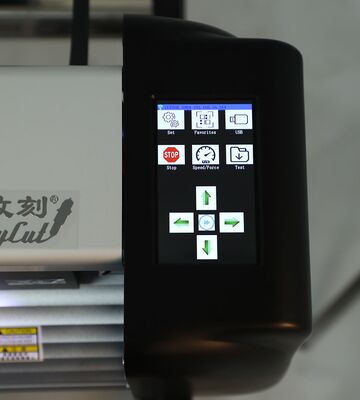

| Control panel | 5.0inch LCD touch screen |
| Motor | Servo drive + Servo motor |
| Cutting length | Unlimited |
| Cutting accuracy | +/- 0.01mm |
| Repeatability | 0.082mm |
| Max.cutting speed | 1200mm/s |
| Max.force | 2000g |
| Main board | ARM smart dual-core chip |
| Auto contour cut | Camera |
| Number of heads | 1 |
| Number of Y motor | 1 |
| Blade type | Rowland blade |
| Floorstand | yes |
| Drawing instruction | Automatic recognition DMPI and HPGL |

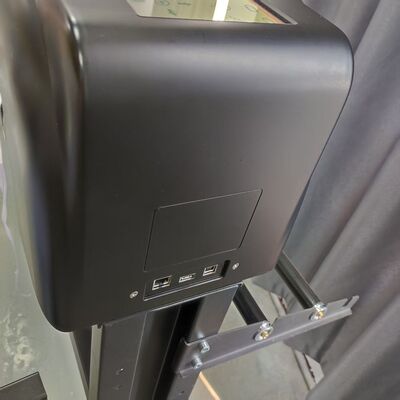

| Connect or interface | USB cable/Udisk/web cable/WIFI(optional) |
| Power | ﹤100w |
| Working environment | ﹢5℃﹣﹢35℃ |
| Power supply | 100v-240v(adaptive),50HZ/60HZ |
| Support software | CDR/AI/PS/Contour software/signmaster(optional) |
| Memory | 1G |
| Support system | All versions of windows |
