| Brand Name: | Anycut |
| Model Number: | ZK1750-SF |
| MOQ: | 1 Piece |
| Price: | $1070~1398/piece |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | 1~4 pieces/ 2days;5~30 pieces/15 days;31~100 pieces/20 days |

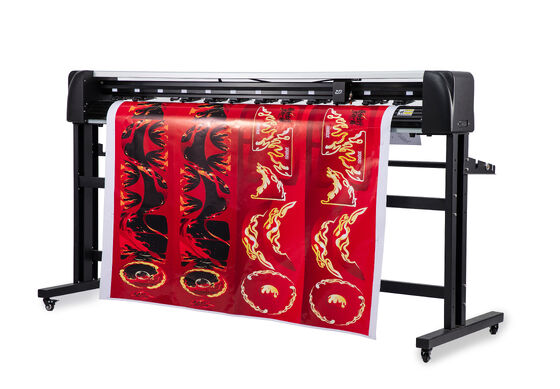

Anycut 69 Inch Servo Smart Cutting Plotter Wide-Format Camera-Positioning Quiet High-Speed
The ZK1750-SF is an intelligent cutting device focused on "wide-format, precision, and quiet efficiency," customized for large-size material processing scenarios: with an ultra-wide 1750mm processing width, it easily handles large-scale materials like big signs and wide vehicle stickers. Paired with a 2000g super cutting force, it efficiently processes hard/special materials (such as PVC glue and white ink heat transfer) while accommodating delicate work like thin vehicle stickers and light box sheets. Its core camera automatic positioning ensures millimeter-level cutting accuracy, unrestricted by material width. The built-in servo motor delivers a dual-benefit experience of "high-speed operation + ultra-low noise," eliminating the loud disturbance of traditional equipment.
What makes it more suitable for batch production is its flexibility: it supports dual WiFi/wired connections to free users from cable constraints; the ARM smart dual-core main control + 1200mm/s high cutting speed ensures both "speed" and "stability" for large-size material processing. From wide vehicle stickers to large light box sheets, from batch PVC glue to white ink heat transfer, it solves efficiency and precision pain points in large-size processing scenarios with differentiated advantages: wide-format compatibility, precise cutting control, and dual excellence in quietness and speed.
| MODEL | ZK1750-SF |
| Max. media width | 1750mm |
| Max. cutting width | 1600mm |
| Packing size | L2110mm*W400mm*H440mm |
| Machine size | L2000mm*W600mm*H1100mm |
| Gross/Net weight | 55kgs/49kgs |
| Control panel | 5.0inch LCD touch screen |
| Motor | Servo drive + Servo motor |
| Cutting length | Unlimited |
| Cutting accuracy | +/- 0.01mm |
| Repeatability | 0.082mm |
| Max.cutting speed | 1200mm/s |
| Max.force | 2000g |
| Main board | ARM smart dual-core chip |
| Auto contour cut | Camera |
| Number of heads | 1 |
| Number of Y motor | 1 |
| Blade type | Rowland blade |
| Floorstand | yes |
| Drawing instruction | Automatic recognition DMPI and HPGL |
| Connect or interface | USB cable/Udisk/web cable/WIFI(optional) |
| Power | ﹤100w |
| Working environment | ﹢5℃﹣﹢35℃ |
| Power supply | 100v-240v(adaptive),50HZ/60HZ |
| Support software | CDR/AI/PS/Contour software/signmaster(optional) |
| Memory | 1G |
| Support system | All versions of windows |
