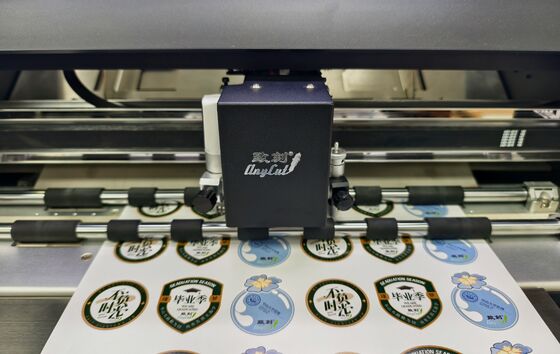

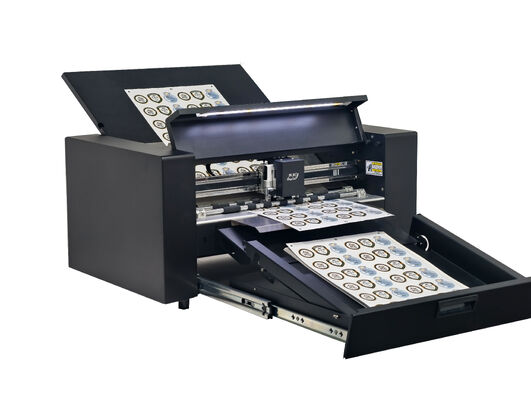

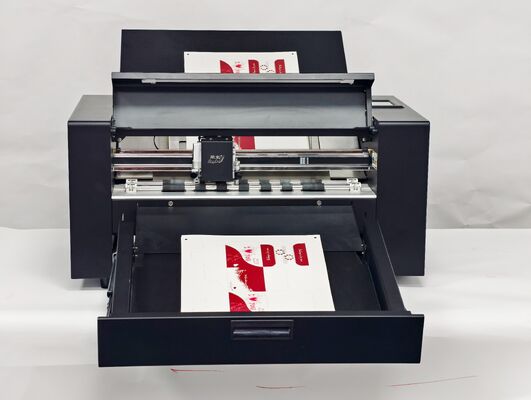

Super Force SVD370DW_RL Double Heads A3/A4 Sheet Self-adhesive Sticker Wheel Indentation Cutting Machine
1. Efficient & Versatile Cutting:
Achieves full cut and half cut in one pass, with a high cutting speed of 1600mm/s, enabling quick processing of a wide range of materials including self-adhesive labels, coated paper, PVC, PET, and specialty papers.
2. User-Friendly Operation:
Equipped with a 4.3-inch touch screen control panel and high-speed servo motor, ensuring smooth, responsive performance. The Roland blade type ensures clean, precise cuts every time.
3. Flexible Connectivity:
Offers multiple connection options including USB, U-disk, wired network, and WiFi, allowing seamless integration into any workflow and easy operation from various devices.
4. Robust & Reliable Build:
Boasts a powerful 3000g max force, capable of handling materials up to 600gsm thickness, with a durable design for long-term, heavy-duty use.
5. Wide Compatibility:
Supports CDR/AI/PS/Contour software and Signmaster (optional), and works with all versions of the Windows operating system, making it adaptable to diverse design and production environments.
| MODEL | ZKSVD370DW_RL |
| Max. media width | 370mm |
| Max. cutting width | 340mm |
| Auto contour cut | Camera (automatically contour cutting) |
| Control panel | 4.3inch touch screen |
| Motor | High speed servo motor |
| Positoning mode | Qr code/Dot/Right angle |
| Number of heads | 2 |
| Blade type | Rowland blade |
| Packing size | L 890mm*W 580mm*H 570mm |
| Machine size | L 768mm*W 455mm*H 336mm |
| Gross/Net weight | 63kgs/46kgs |
| Cutting accuracy | +/- 0.01mm |
| Repeatability | 0.082mm |
| Max.material thickness | 600gsm |
| Max. cutting speed | 1600mm/s |
| Max.force | 3000g |
| Connect or interface | USB cable/Udisk/web cable/WIFI |
| Power | ﹤150w |
| Working environment | ﹢5℃-﹢35℃ |
| Power supply | 100v-240v(adaptive) |
| Suitable cutting material | Self-adhesive sticker/coated paper/PVC |
| Support software | CDR/AI/PS/Contour software/Signmaster(optional) |
| Memory | 1G |
| Support system | All versions of windows |
