| Brand Name: | Anycut |
| Model Number: | ZKSVD370DW_RL |
| MOQ: | 1piece |
| Price: | $1145~1622/piece |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | 1~4 pieces/3days;5~30pieces/15 days;31~100pieces/20days |

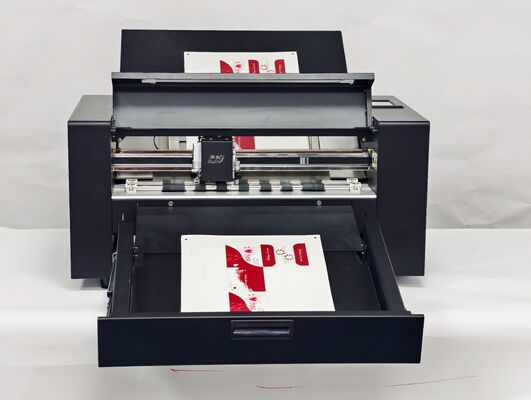

ZKSVD370DW_RL Double Heads Rotary Wheel Die Cutting Machine Advanced Multi-functional Graphic Plotter
High-Speed & Precision Cutting for Professional Labels & Packaging
- 1600mm/s Ultra-Fast Cutting Speed & 3000g Max Force: Finish jobs in record time with powerful, precise wheel indentation.
- All-in-One Full & Half Cut: One-pass molding for seamless label production, no extra steps needed.
- Auto Contour Cut via QR Code: Scan QR codes to auto-generate cutting paths—smart, efficient, error-free.
- 4.3" Touch Screen + WiFi Connectivity: Intuitive control and wireless operation for flexible workflow.
- Versatile Material Compatibility: Cuts self-adhesive stickers, coated paper, PVC, card tags, business cards, and more.
- High Precision: ±0.01mm cutting accuracy and 0.082mm repeatability for consistent, professional results.
Ideal for label makers, packaging producers, and print shops demanding speed, accuracy, and versatility.
| MODEL | ZKSVD370DW_RL |
| Max. media width | 370mm |
| Max. cutting width | 340mm |
| Auto contour cut | Camera (automatically contour cutting) |
| Control panel | 4.3inch touch screen |
| Motor | High speed servo motor |
| Positoning mode | Qr code/Dot/Right angle |
| Number of heads | 2 |
| Blade type | Rowland blade |
| Packing size | L 890mm*W 580mm*H 570mm |
| Machine size | L 768mm*W 455mm*H 336mm |
| Gross/Net weight | 63kgs/46kgs |
| Cutting accuracy | +/- 0.01mm |
| Repeatability | 0.082mm |
| Max.material thickness | 450gsm |
| Max. cutting speed | 1600mm/s |
| Max.force | 3000g |
| Connect or interface | USB cable/Udisk/web cable/WIFI |
| Power | ﹤150w |
| Working environment | ﹢5℃-﹢35℃ |
| Power supply | 100v-240v(adaptive) |
| Suitable cutting material | Self-adhesive sticker/coated paper/PVC |
| Support software | CDR/AI/PS/Contour software/Signmaster(optional) |
| Memory | 1G |
| Support system | All versions of windows |
