| Brand Name: | Anycut |
| Model Number: | ZKSVD370DW_RL |
| MOQ: | 1 |
| Price: | $1145~1622/piece |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | 1~4 pieces/3days;5~30pieces/15 days;31~100pieces/20days |

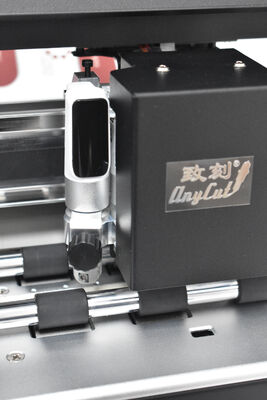

SVD370DW_RL Advanced Doubel Head 1600mm/s Die Cutting Machine With Wheel Indentation
The SVD370DW_RL is an wheel indentation cutting machine, perfect for processing self-adhesive stickers, business cards, cardboard hang tags, and PVC materials. It offers versatile connectivity options including USB, Wi-Fi, and Ethernet, and has a maximum cutting width of 340mm, delivering reliable performance for everyday cutting tasks.
| MODEL | SVD370DW_RL |
| Max. media width | 370mm |
| Max. cutting width | 340mm |
| Auto contour cut | Camera (automatically contour cutting) |
| Control panel | 4.3inch touch screen |
| Motor | High speed servo motor |
| Positoning mode | Qr code/Dot/Right angle |
| Number of heads | 2 |
| Blade type | Rowland blade |
| Packing size | L 890mm*W 580mm*H 570mm |
| Machine size | L 768mm*W 455mm*H 336mm |
| Gross/Net weight | 63kgs/46kgs |
| Cutting accuracy | +/- 0.01mm |
| Repeatability | 0.082mm |
| Max.material thickness | 450gsm |
| Max. cutting speed | 1600mm/s |
| Max.force | 3000g |
| Connect or interface | USB cable/Udisk/web cable/WIFI |
| Power | ﹤150w |
| Working environment | ﹢5℃-﹢35℃ |
| Power supply | 100v-240v(adaptive) |
| Suitable cutting material | Self-adhesive sticker/coated paper/PVC |
| Support software | CDR/AI/PS/Contour software/Signmaster(optional) |
| Memory | 1G |
| Support system | All versions of windows |
