| Brand Name: | Anycut |
| Model Number: | ZKSVD370DW_RL |
| MOQ: | 1 piece |
| Price: | ￥$1145~1622/piece |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | 1~4 pieces/3days;5~30pieces/15 days;31~100pieces/20days |

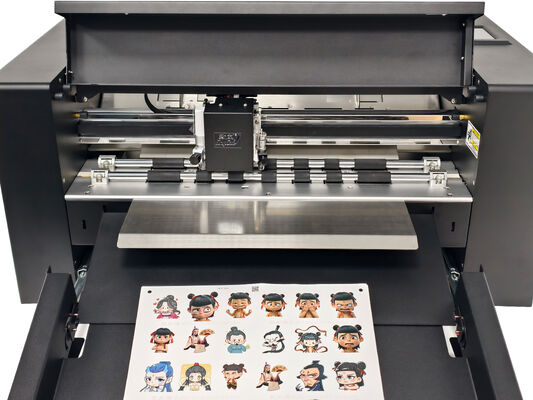

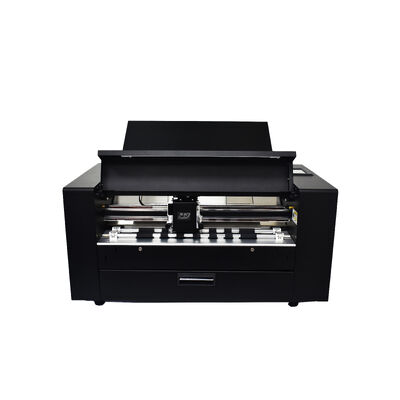

Wheel Indentation A3/A4 Full Cut/half Cut/creasing Multi-functional Label Cutting Machine
1. One-Pass Efficiency:
Delivers both full and half cuts in a single pass, paired with a high cutting speed of 1600mm/s for fast, streamlined production.
2. Smart QR Code Positioning:
Automatically identifies cutting paths via QR code, and supports dot/right-angle positioning for pinpoint accuracy of ±0.01mm.
3. Powerful & Precise Performance:
Features a 3000g max cutting force and Roland blade, ensuring clean, precise cuts on materials up to 600gsm thick.

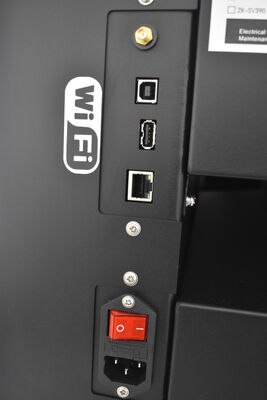

4. Flexible Connectivity:
Offers multiple interface options including USB, U-disk, wired network, and WiFi, enabling seamless integration into any workflow.
5. User-Friendly Control:
The 4.3-inch touch screen and high-speed servo motor provide intuitive, responsive operation for consistent, professional results.
6. Broad Compatibility: Supports CDR/AI/PS/Contour software and Signmaster (optional), and works with all Windows operating systems, making it adaptable to diverse design environments.
| MODEL | ZKSVD370DW_RL |
| Max. media width | 370mm |
| Max. cutting width | 340mm |
| Auto contour cut | Camera (automatically contour cutting) |
| Control panel | 4.3inch touch screen |
| Motor | High speed servo motor |
| Positoning mode | Qr code/Dot/Right angle |
| Number of heads | 2 |
| Blade type | Rowland blade |
| Packing size | L 890mm*W 580mm*H 570mm |
| Machine size | L 768mm*W 455mm*H 336mm |
| Gross/Net weight | 63kgs/47kgs |
| Cutting accuracy | +/- 0.01mm |
| Repeatability | 0.082mm |
| Max.material thickness | 600gsm |
| Max. cutting speed | 1600mm/s |
| Max.force | 3000g |
| Connect or interface | USB cable/Udisk/web cable/WIFI |
| Power | ﹤150w |
| Working environment | ﹢5℃-﹢35℃ |
| Power supply | 100v-240v(adaptive) |
| Suitable cutting material | Self-adhesive sticker/coated paper/PVC |
| Support software | CDR/AI/PS/Contour software/Signmaster(optional) |
| Memory | 1G |
| Support system | All versions of windows |
