| Brand Name: | Anycut |
| Model Number: | ZK1400-SF |
| MOQ: | 1 piece |
| Price: | $670~999/piece |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | 1~4 pieces/2 days;5~30 pieces/15 days;31~100 pieces/20 days |

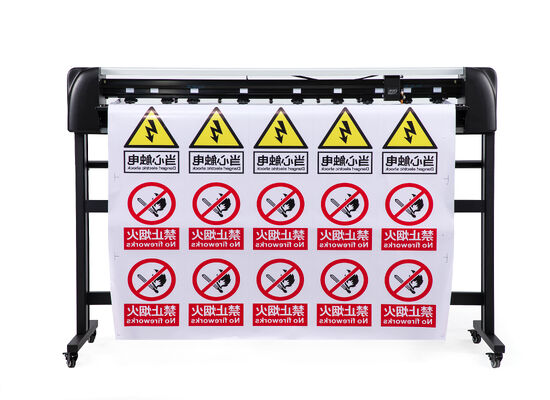

Anycut 55 Inch Large Format Economical Servo Motor Cutting Plotter With CCD Camera Positioning
- Precision Camera Positioning:
Features an integrated camera for fully automatic contour cutting, ensuring unmatched accuracy for intricate designs.
- Superior Cutting Performance:
Delivers a powerful 2000g cutting force, achieving ±0.01mm precision with 0.082mm repeatability for consistent, professional results.
- High-Speed Efficiency:
Boasts a cutting speed of up to 1200mm/s, powered by a quiet and high-speed servo motor for fast, reliable operation.
- Flexible Connectivity:
Offers multiple connection options including USB, U-disk, web cable, and optional WiFi for seamless workflow integration.
- User-Friendly Interface:
Equipped with a 5.0-inch LCD touch screen for intuitive control, and supports all Windows operating systems for broad compatibility.
- Robust & Adaptive Design:
Built with an ARM smart dual-core mainboard, and an adaptive power supply (100v-240v), making it suitable for diverse global work environments (+5°C ~ +35°C).
- Versatile Application:
Handles a wide range of materials including reflective film, advertising reflective film, hollow boards, photo printing materials, and more, making it ideal for sign making, display production, and graphic finishing.
| MODEL | ZK1400-SF |
| Max. media width | 1400mm |
| Max. cutting width | 1250mm |
| Packing size | L 1760mm*W 400mm*H 440mm |
| Machine size | L 1650mm*W 600mm*H 1100mm |
| Gross/Net weight | 42kgs/36kgs |
| Control panel | 5.0inch LCD touch screen |
| Motor | Servo drive + Servo motor |
| Cutting length | Unlimited |
| Cutting accuracy | +/- 0.01mm |
| Repeatability | 0.082mm |
| Max.cutting speed | 1200mm/s |
| Max.force | 2000g |
| Main board | ARM smart dual-core chip |
| Auto contour cut | Camera |
| Number of heads | 1 |
| Number of Y motor | 1 |
| Blade type | Rowland blade |
| Floorstand | yes |
| Drawing instruction | Automatic recognition DMPI and HPGL |
| Connect or interface | USB cable/Udisk/web cable/WIFI(optional) |
| Power | ﹤100w |
| Working environment | ﹢5℃﹣﹢35℃ |
| Power supply | 100v-240v(adaptive),50HZ/60HZ |
| Support software | CDR/AI/PS/Contour software/signmaster(optional) |
| Memory | 128MB |
| Support system | All versions of windows |
