| Brand Name: | Anycut |
| Model Number: | ZKD1500-SF |
| MOQ: | 1piece |
| Price: | $1070~1398/piece |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | 1~4 pieces/2 days;5~30 pieces/15 days;31~100 pieces/20 days |

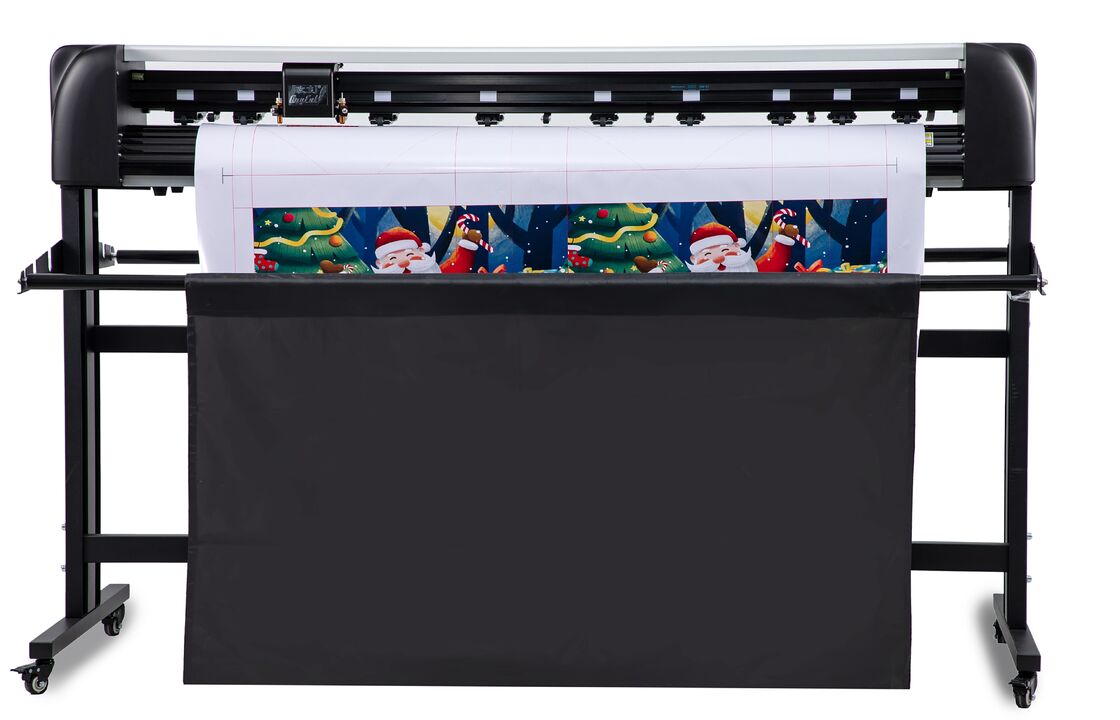

Equipped with a high-speed servo motor, the ZKD1550-SF delivers a maximum cutting speed of 1200mm/s, ensuring efficient and precise production.
Boasting a 2000g super force and ±0.01mm cutting accuracy, this machine handles a wide range of materials—from reflective film and advertising vinyl to hollow boards and photo paper—with consistent, repeatable precision. The built-in camera automatic positioning function guarantees accurate contour cutting, eliminating manual alignment errors.
Powered by an ARM smart dual-core chip and compatible with all Windows versions, it integrates effortlessly into your existing production setup. Whether you're processing large-format media up to 1500mm wide or intricate details, the ZKD1500-SF is engineered to elevate your cutting performance.
| MODEL | ZKD1550-SF |
| Max. media width | 1550mm |
| Max. cutting width | 1250mm |
| Packing size | L 1810mm*W 400mm*H 440mm |
| Machine size | L 1700mm*W 600mm*H 1100mm |
| Gross/Net weight | 50kgs/42kgs |
| Control panel | 5.0inch LCD touch screen |
| Motor | Servo motor |
| Cutting length | Unlimited |
| Cutting accuracy | +/- 0.01mm |
| Repeatability | 0.082mm |
| Max.cutting speed | 1200mm/s |
| Max.force | 2000g |
| Main board | ARM smart dual-core chip |
| Auto contour cut | Camera |
| Number of heads | 2 |
| Blade type | Rowland blade |
| Floorstand | yes |
| Drawing instruction | Automatic recognition DMPI and HPGL |
| Connect or interface | USB cable/Udisk/WIFI(optional)/Web cable(optional) |
| Power | ﹤100w |
| Working environment | ﹢5℃﹣﹢35℃ |
| Power supply | 100v-240v(adaptive),50HZ/60HZ |
| Support software | CDR/AI/PS/Contour software/signmaster(optional) |
| Memory | 1G |
| Support system | All versions of windows |
