| Brand Name: | Anycut |
| Model Number: | ZKSVD370DS |
| MOQ: | 1 piece |
| Price: | $1685-2255/piece |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | 1-4 pieces：2days ;5-30 pieces：2-15 days;30-100 pieces:20 days |
Professional Cutting Solution ZKSVD370DS for Heat Transfer & Car Sticker Production

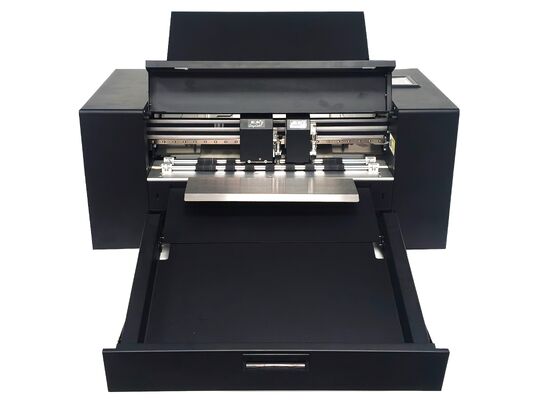

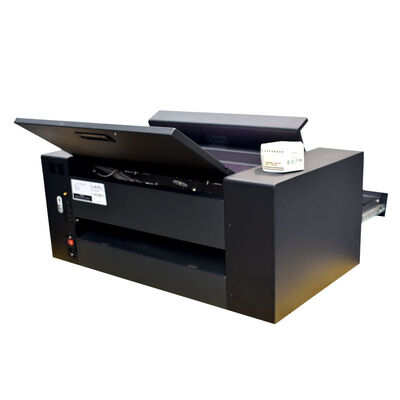

This ZKSVD370DS High-Speed Servo Dual-Head Cutting Machine is tailor-made for printing shops, design studios, advertising workshops and customization studios, which can meet all cutting needs of custom small cards, creative business cards, special-shaped tags, car dashboard films, instant stickers, car stickers, heat transfer materials ,etc. It is the core tool for efficient order production and quality improvement.

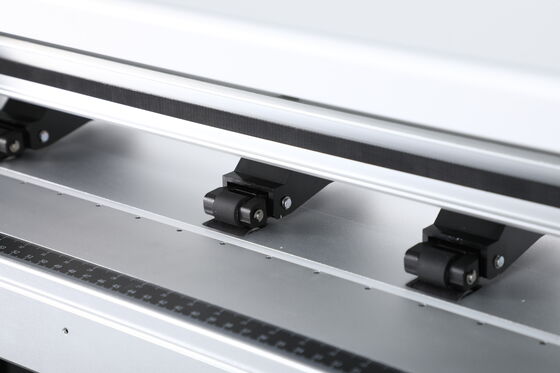

Equipped with a separate double-head trolley, the two carriages work simultaneously, with a maximum cutting speed of 1600mm/s, greatly improving production efficiency and easily handling large-volume orders.
| Item | Automatic patrol edge vinyl label cutting machine |
| MODEL | ZKSVD370DS |
| Max. media width | 370mm |
| Max. cutting width | 340mm |
| Auto contour cut | Camera (automatically contour cutting) |
| Control panel | 4.3inch touch screen |
| Motor | High speed servo motor |
| Positoning mode | Qr code/Dot/Right angle |
| Number of heads | 2 |
| Blade type | Rowland blade |
| Packing size | L 890mm*W 580mm*H 570mm |
| Machine size | L 768mm*W 455mm*H 336mm |
| Gross/Net weight | 47kgs/42kgs |
| Cutting accuracy | +/- 0.01mm |
| Repeatability | 0.082mm |
| Max.material thickness | 450gsm |
| Max. cutting speed | 1600mm/s |
| Max.force | 1600g |
| Connect or interface | USB cable/Udisk/web cable/WIFI |
| Power | ﹤150w |
| Working environment | ﹢5℃-﹢35℃ |
| Power supply | 100v-240v(adaptive) |
| Suitable cutting material | Self-adhesive sticker/coated paper/PVC |
| Support software | CDR/AI/PS/Contour software/Signmaster(optional) |
| Memory | 1G |
| Support system | All versions of windows |
