| Brand Name: | Anycut |
| Model Number: | ZKSVD370DS |
| MOQ: | 1 piece |
| Price: | $1685~2255/piece |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | 1~4 pieces/2 days;5~30 pieces/15 days;31~100 pieces/20 days |

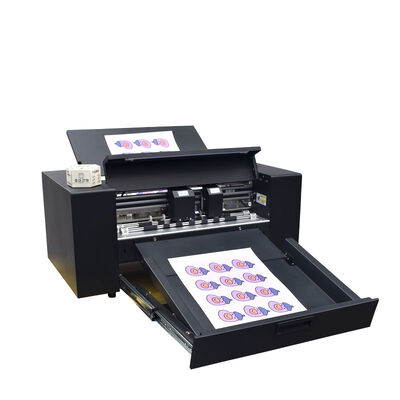

Anycut ZKSVD370DS Auto Feeding Double Carriages Servo Motor Sticker Label Cutting Graph Plotter
The ZKSVD370DS is a hot sale product in the cutting machine market.And we have made a improvement with this machine,the machine has two carriage,which can work separately or together.The efficience will be increased.
The advantage of this machine is its 1600mm/s high speed and +/-0.01mm high accuracy to ensures precise results for intricate designs.In addition,the max cutting material thickness can up to 450gsm to cutting materials like coated paper,PVC.
We support multiple interfaces to conncet your equipment with machine,such as,USB cable/Udisk/web cable/WIFI.
| MODEL | ZKSVD370DS |
| Max. media width | 370mm |
| Max. cutting width | 350mm |
| Auto contour cut | Camera (automatically contour cutting) |
| Control panel | 4.3inch touch screen |
| Motor | High speed servo motor |
| Positoning mode | Qr code/Dot/Right angle |
| Number of heads | 1 |
| Blade type | Rowland blade |
| Packing size | L 990mm*W 600mm*H 570mm |
| Machine size | L 845mm*W 475mm*H 370mm |
| Gross/Net weight | 65kgs/49kgs |
| Cutting accuracy | +/- 0.01mm |
| Repeatability | 0.082mm |
| Max.material thickness | 450gsm |
| Max. cutting speed | 1600mm/s |
| Max.force | 2000g |
| Connect or interface | USB cable/Udisk/web cable/WIFI |
| Power | ﹤150w |
| Working environment | ﹢5℃-﹢35℃ |
| Power supply | 100v-240v(adaptive) |
| Suitable cutting material | Self-adhesive sticker/coated paper/PVC |
| Support software | CDR/AI/PS/Contour software/Signmaster(optional) |
| Memory | 1G |
| Support system | All versions of windows |
