| Brand Name: | Anycut |
| Model Number: | ZKSV370 |
| MOQ: | 1 piece |
| Price: | $1356~1542/piece |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | 1~4 pieces/2 days;5~30 pieces/15 days;31~100 pieces/20 days |

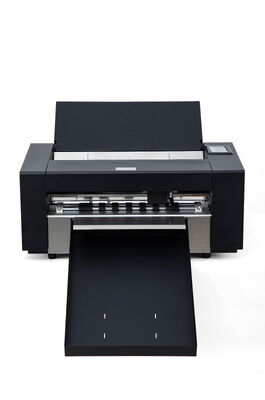

Anycut Basic Model 1600mm/s High Speed Desktop Die Cutting Machine With CCD Camera Positioning

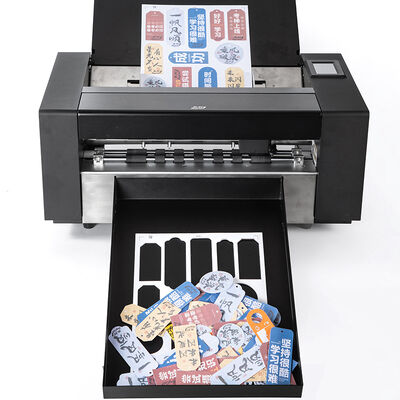

The Anycut ZKSV370 is an high-speed servo cutting plotter, ideal for precision cutting of self-adhesive stickers, personalized business cards, car instrument panel films and various coated paper/PVC materials.
It features a maximum cutting width of 360mm and achieves ±0.01mm cutting accuracy, easily handling full and half-cut tasks with automatic QR code path recognition. The plotter supports multiple connection methods including USB, network cable and WiFi, making it a reliable and user-friendly solution for small-batch customization and basic cutting applications.
| MODEL | ZKSV370 |
| Max. media width | 370mm |
| Max. cutting width | 360mm |
| Auto contour cut | Camera (automatically contour cutting) |
| Control panel | 4.3inch touch screen |
| Motor | High speed servo motor |
| Positoning mode | Qr code/Dot/Right angle |
| Number of heads | 1 |
| Blade type | Rowland blade |
| Packing size | L 890mm*W 580mm*H 570mm |
| Machine size | L 768mm*W 455mm*H 336mm |
| Gross/Net weight | 47kgs/42kgs |
| Cutting accuracy | +/- 0.01mm |
| Repeatability | 0.082mm |
| Max.material thickness | 450gsm |
| Max. cutting speed | 1600mm/s |
| Max.force | 2000g |
| Connect or interface | USB cable/Udisk/web cable/WIFI |
| Power | ﹤150w |
| Working environment | ﹢5℃-﹢35℃ |
| Power supply | 100v-240v(adaptive) |
| Suitable cutting material | Self-adhesive sticker/coated paper/PVC |
| Support software | CDR/AI/PS/Contour software/Signmaster(optional) |
| Memory | 1G |
| Support system | All versions of windows |
