1600mm/s Auto-contour Cutting Machine WIFI Connected Cutter For Graphic Design Studios And Print Shops

Brand Name:	Anycut
Model Number:	ZKSV370
MOQ:	1 piece
Price:	$1356-1542/piece
Payment Terms:	T/T,Western Union
Supply Ability:	1-4 pieces：2days ;5-30 pieces：2-15 days;30-100 pieces:20 days

Detail Information

Product Description

Detail Information

Place of Origin:

Anhui

Certification:

CE/FCC/RoHS

Auto Contour Cut:

Camera (automatically Contour Cutting)

Warranty:

1 Year

Servo Motor:

Single-Head High Speed Servo Motor

Control Panel:

4.3inch Touch Screen

Max Cutting Thickness:

Up To 450gsm

Positioning Mode:

Qr Code/Dot/Right Angle

Max.cutting Speed:

1600mm/s

Suitable Cutting Material:

Self-adhesive Sticker/Coated Paper/PVC

Support Software:

CDR/AI/PS/Contour Software/Signmaster(optional)

Support System:

All Versions Of Windows

Cutting Application:

Small Cards, Personalized Business Cards, Car Instrument Films, Self-adhesive Stickers, Hang Tags

Suitable Materials:

Self-adhesive Sticker, Coated Paper, PVC, Bright Silver Sticker

Packaging Details:

L 890mm*W 580mm*H 570mm

Supply Ability:

1-4 pieces：2days ;5-30 pieces：2-15 days;30-100 pieces:20 days

Product Description

1600mm/s Auto-contour Cutting Machine WIFI Connected Cutter For Graphic Design Studios And Print Shops

✅ High-speed Servo Motor & One-step Full/Half Cut

Equipped with a high-speed servo motor, it completes full cut and half cut seamlessly, eliminating repeated adjustments and doubling production efficiency for fine items like small cards, business cards, and instrument films.

✅ QR Code Auto-contour Cutting

The built-in camera enables fully automatic contour cutting, precisely identifying complex patterns on special-shaped stickers and personalized small cards without manual tracing, significantly reducing labor costs.

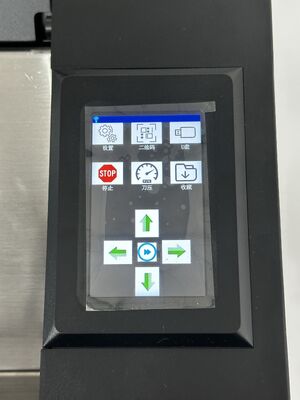

✅ WIFI Wireless Connection & 4.3-inch Touchscreen

Supports WIFI, USB, U-disk, and network cable connections. The 4.3-inch touchscreen offers intuitive operation and offline work capabilities, ideal for flexible production in print shops.

✅ 2000g Max Pressure & 1600mm/s High Speed

Boasts a maximum pressure of 2000g and a maximum cutting speed of 1600mm/s, effortlessly handling 450gsm self-adhesive, coated paper, and PVC materials for efficient mass production.

✅ Precision Positioning & High Stability

Features a cutting accuracy of ±0.01mm and repeatability of 0.082mm, with QR code/dot/right angle positioning to ensure zero errors for fine patterns like small cards and instrument films.

✅ Multi-scenario Application

Perfectly covers core print shop services, including self-adhesive stickers, personalized business card cutting, cardboard hang tags, car instrument films, special-shaped cards, and bright silver self-adhesive cutting.

MODEL	ZKSV370
Max. media width	370mm
Max. cutting width	360mm
Auto contour cut	Camera (automatically contour cutting)
Control panel	4.3inch touch screen
Motor	High speed servo motor
Positoning mode	Qr code/Dot/Right angle
Number of heads	1
Blade type	Rowland blade
Packing size	L 890mmW 580mmH 570mm
Machine size	L 768mmW 455mmH 336mm
Gross/Net weight	47kgs/42kgs
Cutting accuracy	+/- 0.01mm
Repeatability	0.082mm
Max.material thickness	450gsm
Max. cutting speed	1600mm/s
Max.force	1600g
Connect or interface	USB cable/Udisk/web cable/WIFI
Power	﹤150w
Working environment	﹢5℃-﹢35℃
Power supply	100v-240v(adaptive)
Suitable cutting material	Self-adhesive sticker/coated paper/PVC
Support software	CDR/AI/PS/Contour software/Signmaster(optional)
Memory	1G
Support system	All versions of windows
