| Brand Name: | Anycut |
| Model Number: | ZK1400 |
| MOQ: | 1 piece |
| Price: | $663~827/piece |
| Payment Terms: | T/T |
| Supply Ability: | 1~4 pieces/2 days;5~31 pieces/15 days;31~100 pieces/20 days |
ZKST350 A3/A4 Card Sticker Cutting Machine Economic Smart Die Cutting Plotter Stepper Motor +/-0.01m

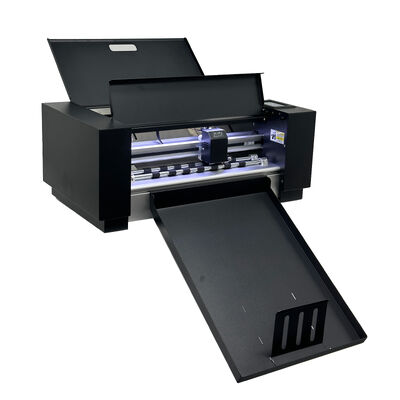

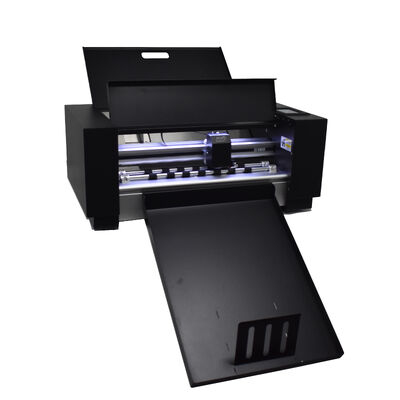

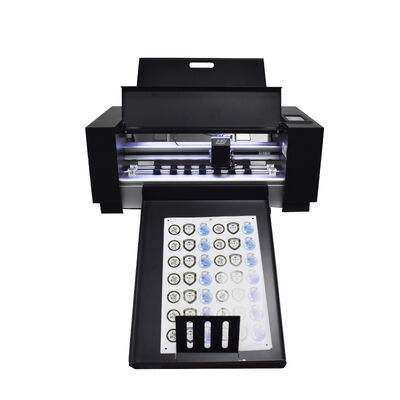

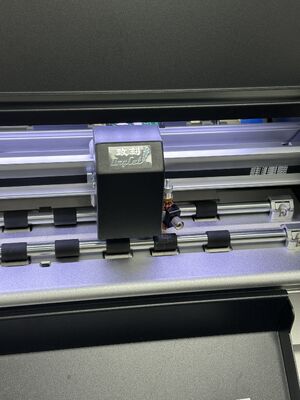

ZKST350 A3/A4 Card Sticker Cutting Machine is an economic smart die cutting plotter built with a stable stepper motor, specially designed for precise cutting of adhesive stickers, PVC labels and paper cards. Equipped with double‑row pressure wheels, it delivers steady feeding and smooth processing for A3 and A4 size materials, perfectly suited for small‑batch label and packaging production.
This efficient die cutting plotter features CCD camera automatic contour positioning, supporting QR code, dot and right‑angle registration. It achieves ultra‑high cutting precision of +/-0.01mm and 0.082mm repeatability, with a 2000g strong cutting force and a maximum speed of 1000mm/s. It can handle materials up to 450gsm, offering 335mm maximum media width and unlimited cutting length for flexible A3/A4 production tasks.
Operated by a 4.3‑inch touch screen, this economic cutting machine supports Wi‑Fi, USB and network cable connections with convenient scan‑to‑cut function. Compatible with CDR, AI, PS and Signmaster software, it works on all Windows systems with adaptive 100‑240V power supply, making it a cost‑effective smart choice for printing shops and small‑scale custom processing.
| MODEL | ZKST350 |
| Max. media width | 335mm |
| Max. cutting width | 330mm |
| Cutting length | Unlimited |
| Auto contour cut | Camera (automatically contour cutting) |
| Control panel | 4.3inch touch screen |
| Motor | Stepper motor |
| Positoning mode | Qr code/Dot/Right angle |
| Number of heads | 1 |
| Blade type | Rowland blade |
| Packing size | L 810mm*W 510mm*H 540mm |
| Machine size | L 700mm*W 425mm*H 310mm |
| Gross/Net weight | 38kgs/30kgs |
| Cutting accuracy | +/- 0.01mm |
| Repeatability | 0.082mm |
| Max.material thickness | 450gsm |
| Max. cutting speed | 1000mm/s |
| Max.force | 2000g |
| Connect or interface | USB cable/Udisk/web cable/WIFI |
| Power | ﹤150w |
| Working environment | ﹢5℃-﹢35℃ |
| Power supply | 100v-240v(adaptive) |
| Support software | CDR/AI/PS/Contour software/Signmaster(optional) |
| Memory | 1G |
| Support system | All versions of windows |
