| Brand Name: | Anycut |
| Model Number: | ZKSVD370DS |
| MOQ: | 1 piece |
| Price: | $1685-2255/piece |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | 1-4 pieces：2days ;5-30 pieces：2-15 days;30-100 pieces:20 days |

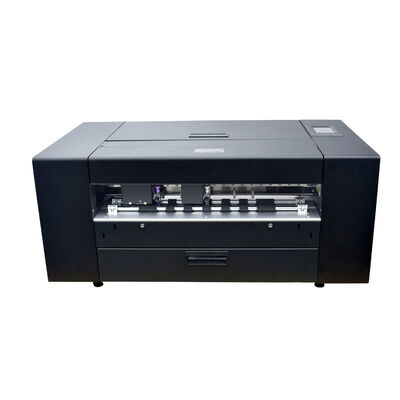

Anycut A3/A4 Sticker Label Cutting Machine with Double Head Full Kiss Cut Drawer-style Paper Tray
The ZKSVD370DS High-Speed Servo Motor Cutting Machine is a precision-engineered tool that merges speed, intelligence, and versatility for professional cutting needs. Driven by a high-speed servo motor, it achieves a 1600mm/s max cutting speed and ±0.01mm cutting accuracy, with dual full/half cut modes and automatic QR code positioning for error-free path recognition. Its 370mm max media width and ability to handle materials up to 450gsm thick make it suitable for cutting self-adhesive stickers, coated paper, PVC, and more—perfect for producing stickers, business cards, hang tags, car decals, and paper boxes.

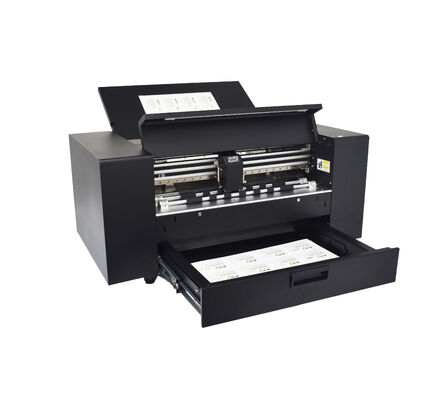

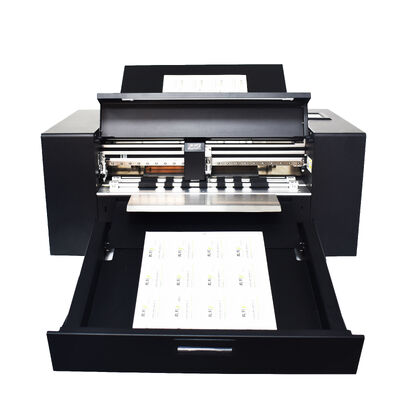

Featuring a 4.3-inch touch screen, drawer-style paper tray, and WiFi/USB/UDisk connectivity, it offers intuitive and flexible operation. Compatible with CDR/AI/PS/Contour (plus optional Signmaster) and all Windows OS versions, this compact machine (L845×W475×H370mm, 63/47kgs gross/net weight) delivers efficient performance with ≤150w power consumption and 1G memory, standing as an ideal all-in-one cutting solution for diverse commercial applications.
| MODEL | ZKSVD370DS |
| Max. media width | 370mm |
| Max. cutting width | 340mm |
| Auto contour cut | Camera (automatically contour cutting) |
| Control panel | 4.3inch touch screen |
| Motor | High speed servo motor |
| Positoning mode | Qr code/Dot/Right angle |

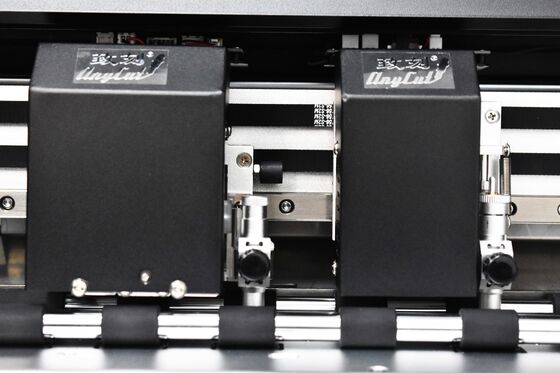

| Number of heads | 2 |
| Blade type | Rowland blade |
| Packing size | L 890mm*W 580mm*H 570mm |
| Machine size | L 768mm*W 455mm*H 336mm |
| Gross/Net weight | 47kgs/42kgs |
| Cutting accuracy | +/- 0.01mm |
| Repeatability | 0.082mm |
| Max.material thickness | 450gsm |
| Max. cutting speed | 1600mm/s |
| Max.force | 1600g |

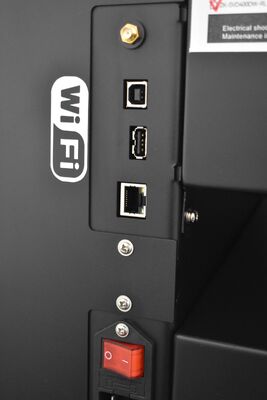

| Connect or interface | USB cable/Udisk/web cable/WIFI |
| Power | ﹤150w |
| Working environment | ﹢5℃-﹢35℃ |
| Power supply | 100v-240v(adaptive) |
| Suitable cutting material | Self-adhesive sticker/coated paper/PVC |
| Support software | CDR/AI/PS/Contour software/Signmaster(optional) |
| Memory | 1G |
| Support system | All versions of windows |
