| Brand Name: | Anycut |
| Model Number: | ZKD1000 |
| MOQ: | 1Piece |
| Price: | $613~827/piece |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | 1~4 pieces/2 days;5~30 pieces/15 days;31~100 pieces/20 days |

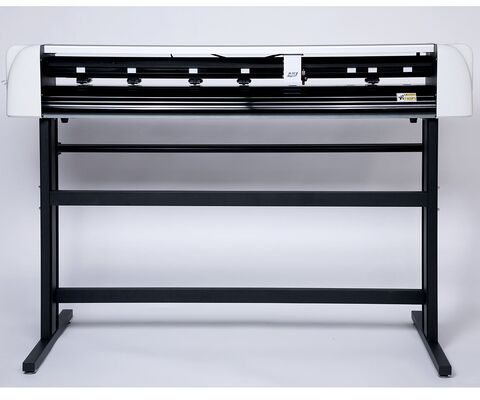

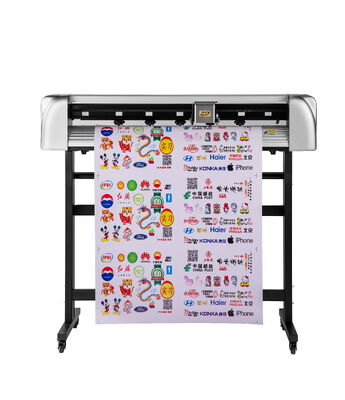

Dual-head High Quality Unlimited Smart Film Cutting Machine Plotter With Full Cut And Kiss Cut Function

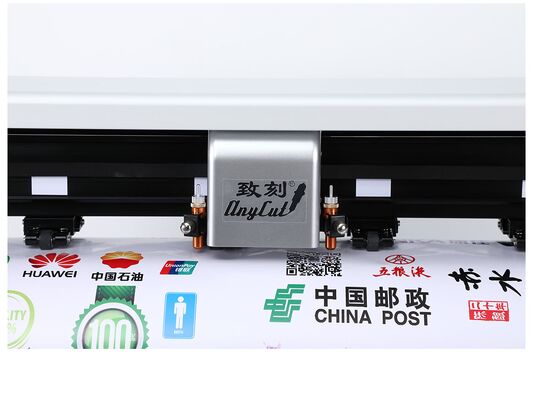

The ZKD1000 is a versatile, high-precision cutting plotter built for efficiency and flexibility in sticker, label, and graphic production. It features a dual knife head carriage that enables you to complete half-cut, full-cut, creasing, and cutting operations in one pass, making it perfect for processing materials like crystal label stock, PVC adhesive, white ink stickers, and vehicle decals.
With a 2000g max cutting force, it handles tough materials with ease, while its camera automatic positioning system delivers ±0.01mm cutting accuracy for precise contour cutting of pre-printed graphics. The 5.0-inch LCD touch screen and ARM smart dual-core chip ensure smooth, intuitive operation, and multiple connectivity options (USB, U-disk, optional WiFi) let you work flexibly.
This floor-standing plotter supports all Windows operating systems and integrates seamlessly with popular design software (CDR, AI, PS, Contour software, Signmaster optional). Whether you’re producing labels, decals, or light box panels, the ZKD1000 is a reliable solution for small to medium-sized sign shops and print businesses.
| MODEL | ZKD1000 |
| Max. media width | 1000mm |
| Max. cutting width | 850mm |
| Packing size | L1360mm*W400mm*H440mm |
| Machine size | L1250mm*W600mm*H1100mm |
| Gross/Net weight | 36kgs/30kgs |
| Control panel | 5.0inch LCD touch screen |
| Motor | Stepper |
| Cutting length | Unlimited |
| Cutting accuracy | +/- 0.01mm |
| Repeatability | 0.082mm |
| Max.cutting speed | 700mm/s |
| Max.force | 2000g |
| Main board | ARM smart dual-core chip |
| Auto contour cut | Camera |
| Number of heads | 2 |
| Blade type | Rowland blade |
| Floorstand | yes |
| Drawing instruction | Automatic recognition DMPI and HPGL |
| Connect or interface | USB cable/Udisk/WIFI(optional) |
| Power | ﹤100w |
| Working environment | ﹢5℃﹣﹢35℃ |
| Power supply | 100v-240v(adaptive),50HZ/60HZ |
| Support software | CDR/AI/PS/Contour software/signmaster(optional) |
| Memory | 1G |
| Support system | All versions of windows |
