| Brand Name: | Anycut |
| Model Number: | SVD370PRO_RL |
| MOQ: | 1 |
| Price: | $2826~3682/piece |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | 1~4 pieces/2 days;5~30 pieces/15 days;31~100 pieces/20 days |

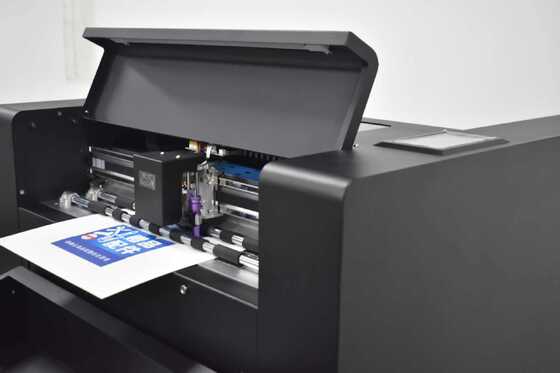

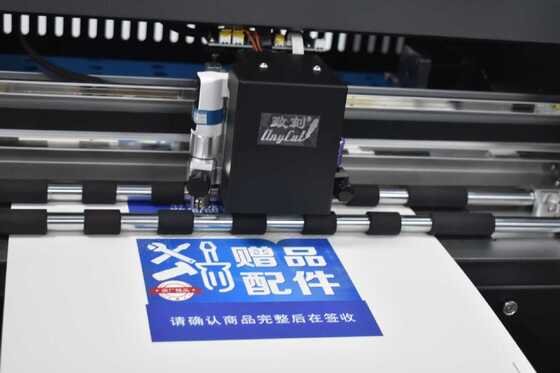

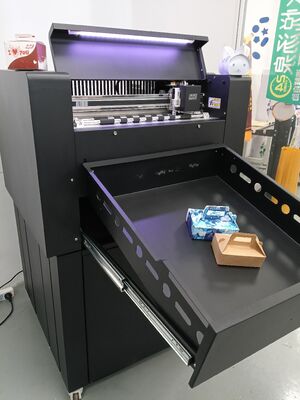

Anycut Batch Paper Feeding A3/A4 Adsorption Wheel Indention Static Double-fed Removing Label Cutter
The SVD370PRO_RL is a high-performance, all-in-one machine that combines adsorption wheel creasing, precision cutting, and automatic feeding, designed for small to medium-volume production of stickers, tags, business cards, and carton materials.
It features a suction-type feeding system that effectively eliminates static and prevents double-feeding, with a capacity to load up to 1000 sheets at a time. Powered by a high-speed servo motor and dual-knife heads, it achieves a maximum cutting speed of 1600mm/s with 3000g of force, enabling full-cut, half-cut, and creasing operations in a single pass.
Equipped with camera automatic contour cutting and ±0.01mm accuracy, it delivers precise results for intricate designs on materials like self-adhesive stickers, specialty paper, and PVC. The 5.0-inch LCD touch screen offers intuitive control, while flexible connectivity (USB, U-disk, network cable, and WiFi) supports multi-computer linkage and offline operation. It is compatible with all Windows systems and professional software like SignMaster, making it a versatile solution for printing, packaging, and sign-making businesses.
| MODEL | ZKSVD370PRO |
| Max. media width | 370mm |
| Max. cutting width | 340mm |
| Auto contour cut | Camera (automatically contour cutting) |
| Control panel | 5.0 inch touch screen |
| Motor | High speed servo motor |
| Positoning mode | Qr code/Dot/Right angle |
| Number of heads | 1 |
| Blade type | Rowland blade |
| Packing size | Host:L 960mm*W 960mm*H 780mm;Cabinet:L910mm*W890mm*H860mm |
| Machine size | L 790mm*W 790mm*H 1200mm |
| Gross/Net weight | 206kgs/142kgs |
| Cutting accuracy | +/- 0.01mm |
| Repeatability | 0.082mm |
| Max.material thickness | 600gsm |
| Max. cutting speed | 1600mm/s |
| Max.force | 3000g |
| Connect or interface | USB cable/Udisk/web cable/WIFI |
| Power | ﹤150w |
| Working environment | ﹢5℃-﹢35℃ |
| Power supply | 100v-240v(adaptive) |
| Suitable cutting material | Self-adhesive sticker/coated paper/PVC |
| Support software | CDR/AI/PS/Contour software/Signmaster(optional) |
| Memory | 1G |
| Support system | All versions of windows |
