| Brand Name: | Anycut |
| Model Number: | SVD370PRO_RL |
| MOQ: | 1 |
| Price: | $2826~3682/piece |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | 1~4 pieces/2 days;5~30 pieces/15 days;31~100 pieces/20 days |

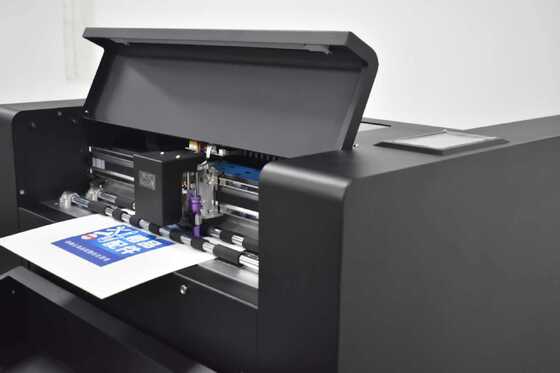

SVD370PRO_RL Advanced Suction-type Batch Feeding Paper Die Cutting Machine With Indentation
The ZKSV350 is an entry-level servo cutting plotter, ideal for processing self-adhesive stickers and special-shaped cards/hang tags. It features versatile connectivity options, including USB, Wi-Fi, and Ethernet, for seamless integration into your workflow. With a maximum cutting width of 330mm and a maximum cutting speed of 1500mm/s, this machine delivers reliable performance for your everyday cutting needs.
| MODEL | ZKSVD370PRO |
| Max. media width | 370mm |
| Max. cutting width | 340mm |
| Auto contour cut | Camera (automatically contour cutting) |
| Control panel | 5.0inch touch screen |
| Motor | High speed servo motor |
| Positoning mode | Qr code/Dot/Right angle |
| Number of heads | 2 |
| Blade type | Rowland blade |
| Packing size | Host machine: L 960mm*W 960mm*H 780mm; Cabine: L 910mm*W 890mm*H 860mm |
| Machine size | L 790mm*W 790mm*H 1200mm |
| Gross/Net weight | 206kgs/142kgs |
| Cutting accuracy | +/- 0.01mm |
| Repeatability | 0.082mm |
| Max.material thickness | 600gsm |
| Max. cutting speed | 1600mm/s |
| Max.force | 3000g |
| Connect or interface | USB cable/Udisk/web cable/WIFI |
| Power | ﹤150w |
| Working environment | ﹢5℃-﹢35℃ |
| Power supply | 100v-240v(adaptive) |
| Suitable cutting material | Self-adhesive sticker/coated paper/PVC |
| Support software | CDR/AI/PS/Contour software/Signmaster(optional) |
| Memory | 1G |
| Support system | All versions of windows |
