| Brand Name: | Anycut |
| Model Number: | SVD370PRO_RL |
| MOQ: | 1 piece |
| Price: | $2826~3682/piece |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | 1~4 pieces/2 days;5~30 pieces/15 days;31~100 pieces/20 days |

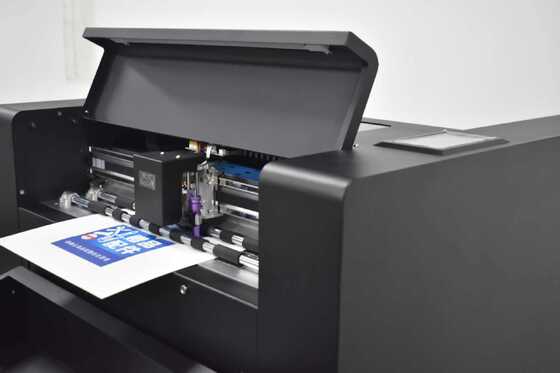

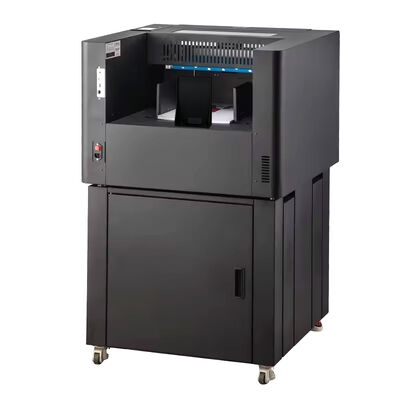

A3/A4 Carton Adsorption Statics Removing Label Cutting Machine With Wheel Indentation
1. High-Volume Efficiency
Handles up to 1,000 sheets in a single batch and completes full cut, half cut, creasing, and contouring in one pass, drastically boosting productivity.
2. Advanced Adsorption Feeding
The suction feeding system effectively removes static electricity and prevents double-sheet feeding, ensuring smooth, reliable material handling.

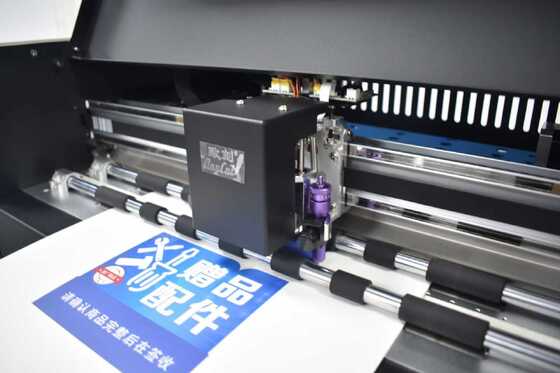

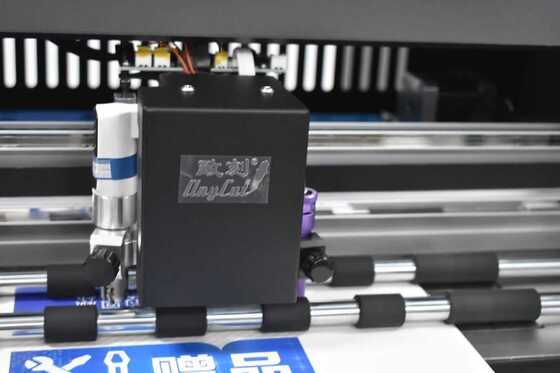

3. Dual-Head Precision
Equipped with two Roland blades and a high-speed servo motor, it delivers a cutting accuracy of ±0.01mm and a maximum force of 3000g for clean, precise results on materials up to 600gsm.
4. Multi-Device Connectivity
Features WiFi, USB, U-disk, and wired network connections, allowing one machine to link with multiple computers and support offline operation for flexible workflows.
5. Broad Compatibility
Works with all Windows operating systems and supports CDR/AI/PS/Contour software, making it adaptable to diverse design and production environments.
| MODEL | ZKSVD370PRO |
| Max. media width | 370mm |
| Max. cutting width | 340mm |
| Auto contour cut | Camera (automatically contour cutting) |
| Control panel | 5.0inch touch screen |
| Motor | High speed servo motor |
| Positoning mode | Qr code/Dot/Right angle |
| Number of heads | 2 |
| Blade type | Rowland blade |
| Packing size | Host machine: L 960mm*W 960mm*H 780mm; Cabine: L 910mm*W 890mm*H 860mm |
| Machine size | L 790mm*W 790mm*H 1200mm |
| Gross/Net weight | 206kgs/142kgs |
| Cutting accuracy | +/- 0.01mm |
| Repeatability | 0.082mm |
| Max.material thickness | 600gsm |
| Max. cutting speed | 1600mm/s |
| Max.force | 3000g |
| Connect or interface | USB cable/Udisk/web cable/WIFI |
| Power | ﹤150w |
| Working environment | ﹢5℃-﹢35℃ |
| Power supply | 100v-240v(adaptive) |
| Suitable cutting material | Self-adhesive sticker/coated paper/PVC |
| Support software | CDR/AI/PS/Contour software/Signmaster(optional) |
| Memory | 1G |
| Support system | All versions of windows |
