Compact ZKSV350 Servo Die Cutter WIFI Control, 4.3-inch Touch Screen, Easy Operation for All Users

Brand Name: Anycut
Model Number: ZKSV350
MOQ: 1 piece
Price: $856-1256/piece
Payment Terms: T/T,Western Union
Supply Ability: 1-4 pieces：2days ;5-30 pieces：2-15 days;30-100 pieces:20 days
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin:
Anhui
Certification:
CE/FCC/RoHS
Product Model:
ZKSV350 Servo Die-Cutting Machine
Max Cutting Speed:
1500mm/s High-Speed Cutting
Key Technology:
Servo Motor Driven
Compatible Software:
CorelDRAW, Adobe Illustrator, SignMaster (Optional)
Max Cutting Force:
2000g Super Heavy-Duty Pressure
Max Material Thickness:
Up To 450gsm Thick Materials
Operation Interface:
4.3-inch Intuitive Touch Screen
File Access:
QR Code Scanning For Quick File Retrieval
Cutting Precision:
±0.01mm Ultra-High Accuracy
Connectivity Options:
WIFI + USB + Network Cable
Related Machine Type:
Die Cut Machine, Craft Cutter, Label Maker
Key Selling Points:
Kiss Cut, Perforated Cut, Flex Cut
Packaging Details:
L 780mm*W 580mm*H 520mm
Supply Ability:
1-4 pieces：2days ;5-30 pieces：2-15 days;30-100 pieces:20 days
Highlight:

ZKSV350 servo die cutter with WiFi control

,

compact servo die cutter with touch screen

,

easy operation servo die cutter for users

Product Description

Compact ZKSV350 Servo Die Cutter  WIFI Control, 4.3-inch Touch Screen, Easy Operation for All Users



The ZKSV350 Servo Motor Die-Cutting Machine is a professional, high-performance cutting solution developed by Hefei Yike CNC. Powered by a premium servo motor, it provides superior precision and stability compared with conventional stepper motor die-cutters. With a cutting speed of up to 1500mm/s, it greatly enhances processing efficiency, making it the ideal choice for precision cutting of shaped cards, self-adhesive labels, creative merchandise and a wide range of similar materials.

This machine comes with an integrated CCD camera for automatic positioning, supporting QR code, dot mark and right-angle positioning modes. It delivers an accurate cutting tolerance of ±0.01mm, clearly retaining the fine details of complex patterns. Its 2000g maximum cutting pressure enables smooth processing of materials up to 450gsm.

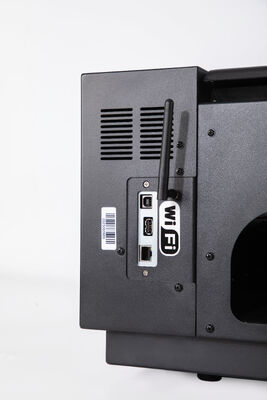

For easier operation, the ZKSV350 supports WIFI wireless connection and quick file access via QR code scanning. The 4.3-inch LCD touchscreen offers a clear and straightforward interface, allowing new operators to learn and use the machine with minimal training.

Thanks to its compact structure of 693×480×295mm, the machine can be placed in various store and workshop layouts. It is fully compatible with all Windows systems and mainstream design software. Whether used for small-batch custom production or large-scale manufacturing, this servo-driven die-cutting machine ensures stable, efficient and high-precision cutting performance.


MODEL ZKSV350
Max. media width 345mm,A4/A3/A3+
Max. cutting width 330mm
Cutting length Unlimited
Auto contour cut Camera (automatically contour cutting)
Control panel 4.3inch touch screen
Motor servo motor
Positoning mode Qr code/Dot/Right angle
Number of heads 1
Blade type Rowland blade
Packing size L 780mm*W 580mm*H 520mm
Machine size L 693mm*W 480mm*H 295mm
Gross/Net weight 52kgs/37kgs
Cutting accuracy +/- 0.01mm
Repeatability 0.082mm
Max.material thickness 450gsm
Max. cutting speed 1500mm/s
Max.force 2000g
Connect or interface USB cable/Udisk/web cable/WIFI
Power ﹤150w
Working environment ﹢5℃-﹢35℃
Power supply 100v-240v(adaptive)
Support software CDR/AI/PS/Contour software/Signmaster(optional)
Memory 1G
Support system All versions of windows
