| Brand Name: | Anycut |
| Model Number: | ZKSV350 |
| MOQ: | 1piece |
| Price: | $856~1255/piece |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | 1~4 pieces/2 days;5~30 pieces/15 days;31~100 pieces/20 days |

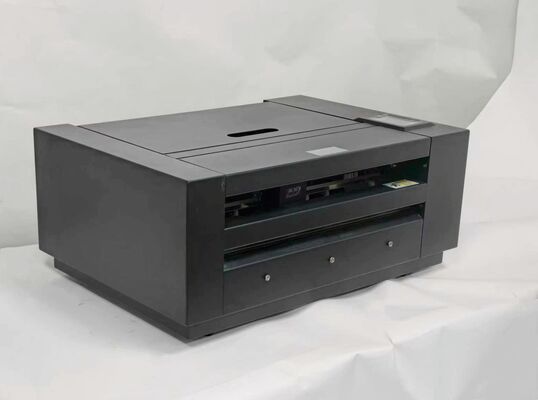

ZKSV350 A3/A4 1500mm/s Servo Motor CCD Auto Contour Die Cutting Machine
| MODEL | ZKSV350 |
| Max. media width | 345mm,A4/A3/A3+ |
| Max. cutting width | 330mm |
| Cutting length | Unlimited |
| Auto contour cut | Camera (automatically contour cutting) |
| Control panel | 4.3inch touch screen |
| Motor | servo motor |
| Positoning mode | Qr code/Dot/Right angle |
| Number of heads | 1 |
| Blade type | Rowland blade |
| Packing size | L 780mm*W 580mm*H 520mm |
| Machine size | L 693mm*W 480mm*H 295mm |
| Gross/Net weight | 52kgs/37kgs |
| Cutting accuracy | +/- 0.01mm |
| Repeatability | 0.082mm |
| Max.material thickness | 450gsm |
| Max. cutting speed | 1500mm/s |
| Max.force | 2000g |
| Connect or interface | USB cable/Udisk/web cable/WIFI |
| Power | ﹤150w |
| Working environment | ﹢5℃-﹢35℃ |
| Power supply | 100v-240v(adaptive) |
| Support software | CDR/AI/PS/Contour software/Signmaster(optional) |
| Memory | １Ｇ |
| Support system | All versions of windows |
