| Brand Name: | Anycut |
| Model Number: | ZKD1000 |
| MOQ: | 1Piece |
| Price: | $613~827/piece |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | 1~4 pieces/2 days;5~30 pieces/15 days;31~100 pieces/20 days |

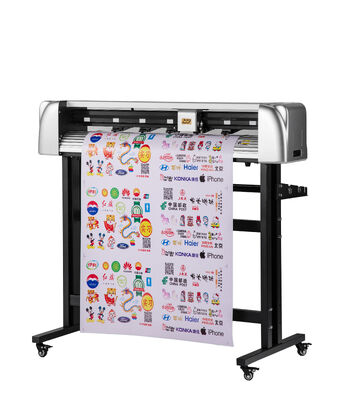

Anycut 39 Inch Dual-servo Intelligent Positioning Ultra-High Pressure High-Precision
The ZK1800-SF is a high-efficiency cutting machine featuring intelligent visual positioning + dual-servo power. Equipped with a dedicated camera automatic positioning system, it accurately captures pattern contours; paired with the 2000g ultra-high pressure cutting force of its Y-axis dual servo motor, it achieves quiet operation while cutting at a high speed of 1200mm/s, with precision firmly locked at ±0.01mm. Whether handling flexible materials like reflective film and wall stickers, or rigid media such as signs and packaging, it balances "fast cutting" and "precision trimming" seamlessly.
It supports multi-mode connectivity (WiFi, wired network, etc.) and comes with automatic contour cutting, intelligently recognizing DMP/HPL files for fully automated processing from material positioning to finished product cutting—drastically reducing manual debugging time. The combination of a 5.5-inch touch screen and an ARM smart dual-core mainboard ensures smooth, user-friendly operation, and it is compatible with all Windows systems and mainstream design software. From advertising sign production to custom decorative processing, the ZK1800-SF is a versatile, high-efficiency production tool for diverse scenarios.
| MODEL | ZKD1000 |
| Max. media width | 1000mm |
| Max. cutting width | 850mm |
| Packing size | L1360mm*W400mm*H440mm |
| Machine size | L1250mm*W600mm*H1100mm |
| Gross/Net weight | 36kgs/30kgs |
| Control panel | 5.0inch LCD touch screen |
| Motor | Stepper |
| Cutting length | Unlimited |
| Cutting accuracy | +/- 0.01mm |
| Repeatability | 0.082mm |
| Max.cutting speed | 700mm/s |
| Max.force | 2000g |
| Main board | ARM smart dual-core chip |
| Auto contour cut | Camera |
| Number of heads | 2 |
| Blade type | Rowland blade |
| Floorstand | yes |
| Drawing instruction | Automatic recognition DMPI and HPGL |
| Connect or interface | USB cable/Udisk/WIFI(optional) |
| Power | ﹤100w |
| Working environment | ﹢5℃﹣﹢35℃ |
| Power supply | 100v-240v(adaptive),50HZ/60HZ |
| Support software | CDR/AI/PS/Contour software/signmaster(optional) |
| Memory | 1G |
| Support system | All versions of windows |
