| Brand Name: | Anycut |
| Model Number: | SVD370DW_RL |
| MOQ: | 1 piece |
| Price: | $1541-$2112 |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | 1-4 pieces：2days ;5-30 pieces：2-15 days;30-100 pieces:20 days |

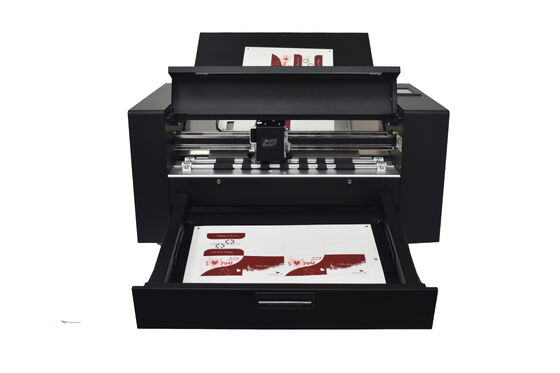

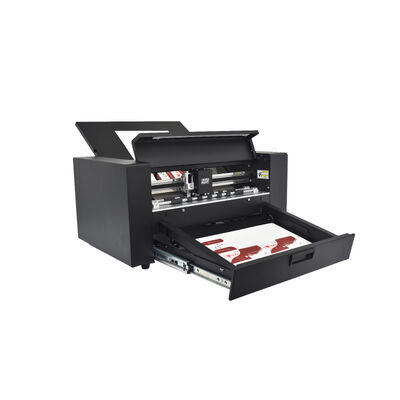

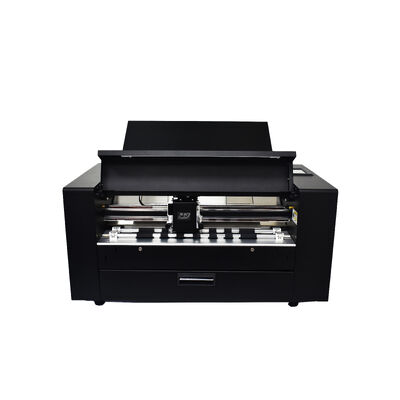

Anycut A3/A4 Sticker Label Cutting Machine with Double Head Wheel Indentation Automatically Cutting
The SVD370DW_RL Wheel Indentation High-Speed Servo Motor Cutting Machine is a professional cutting device featuring wheel indentation technology, enabling one-time forming of full and half cuts for efficient processing. Powered by a high-speed servo motor, it achieves a max cutting speed of 1600mm/s and a cutting accuracy of ±0.01mm, with a max force of 3000g to handle materials up to 600gsm thick. It automatically identifies cutting paths via QR code, dot, or right angle positioning, and comes with a 4.3-inch touch screen for intuitive control.
With a max media width of 370mm and max cutting width of 340mm, it is equipped with two Rowland blades and supports WiFi, USB, UDisk, and web cable connectivity for flexible operation. Suitable for cutting special-shaped stickers, personalized business cards, card hang tags, PVC/PET stickers, special paper stickers, and paper boxes, it is compatible with CDR/AI/PS/Contour software (Signmaster optional) and all Windows systems. Compact in size (L768×W455×H336mm) with a gross weight of 63kgs and net weight of 46kgs, it operates at ≤150w power consumption with 1G memory, making it a versatile cutting solution for commercial and craft applications.
| MODEL | ZKSVD370DW_RL |
| Max. media width | 370mm |
| Max. cutting width | 340mm |
| Auto contour cut | Camera (automatically contour cutting) |
| Control panel | 4.3inch touch screen |
| Motor | High speed servo motor |
| Positoning mode | Qr code/Dot/Right angle |
| Number of heads | 2 |
| Blade type | Rowland blade |
| Packing size | L 890mm*W 580mm*H 570mm |
| Machine size | L 770mm*W 480mm*H 370mm |
| Gross/Net weight | 63kgs/47kgs |
| Cutting accuracy | +/- 0.01mm |
| Repeatability | 0.082mm |
| Max.material thickness | 450gsm |
| Max. cutting speed | 1600mm/s |
| Max.force | 3000g |

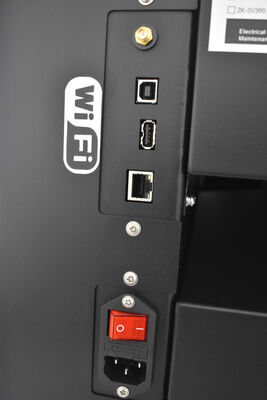

| Connect or interface | USB cable/Udisk/web cable/WIFI |
| Power | ﹤150w |
| Working environment | ﹢5℃-﹢35℃ |
| Power supply | 100v-240v(adaptive) |
| Suitable cutting material | Self-adhesive sticker/coated paper/PVC |
| Support software | CDR/AI/PS/Contour software/Signmaster(optional) |
| Memory | 1G |
