| Brand Name: | Anycut |
| Model Number: | SVD370DW_RL |
| MOQ: | 1 piece |
| Price: | $1541-$2112 |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | 1-4 pieces：2days ;5-30 pieces：2-15 days;30-100 pieces:20 days |

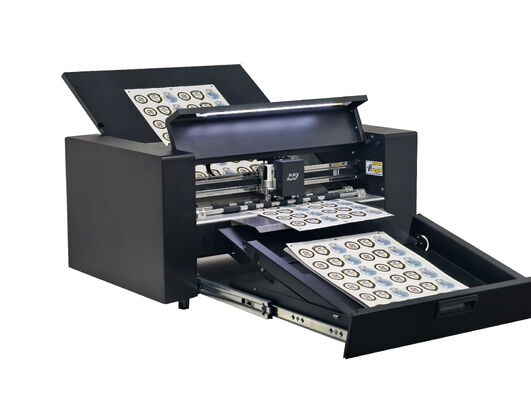

Anycut A3/A4 Sticker Label Cutting Machine with Double Head Wheel Indentation Automatically Cutting
The Anycut SVD370DW_RL:3000g Pressure Auto-Contour Cutter for PVC & Specialty Paper
✅ Wheel Indentation & One-step Full/Half Cut
Eliminate repeated blade changes and machine adjustments, completing full cut, half cut, and indentation in one pass to drastically boost production efficiency for small cards, business cards, and paper boxes.
✅ QR Code Auto-contour Cutting
The built-in camera enables fully automatic contour cutting, precisely identifying complex patterns on special-shaped stickers and personalized small cards without manual tracing.
✅ High-speed Servo Motor & 3000g Max Pressure
Boasts a maximum cutting speed of 1600mm/s and a maximum pressure of 3000g, effortlessly handling 600gsm thick specialty paper, PVC, and PET self-adhesive materials.
✅ WIFI Wireless Connection & 4.3-inch Touchscreen
Supports WIFI, USB, U-disk, and network cable connections. The 4.3-inch touchscreen offers intuitive operation and offline work capabilities, ideal for flexible production in print shops.
✅ Precision Positioning & High Stability
Features a cutting accuracy of ±0.01mm and repeatability of 0.082mm, with QR code/dot/right angle positioning to ensure zero errors for fine patterns like small cards and instrument films.
✅ Multi-scenario Application
Perfectly covers core print shop services, including special-shaped self-adhesive stickers, personalized business card cutting, cardboard hang tags, PVC/PET self-adhesive cutting, specialty paper die-cutting, and paper box cutting.
| Item | High speed servo motor label cutting plotter |
| MODEL | ZKSVD370DW_RL |
| Max. media width | 370mm |
| Max. cutting width | 340mm |
| Auto contour cut | Camera (automatically contour cutting) |
| Control panel | 4.3inch touch screen |
| Motor | High speed servo motor |
| Positoning mode | Qr code/Dot/Right angle |
| Number of heads | 2 |
| Blade type | Rowland blade |
| Packing size | L 890mm*W 580mm*H 570mm |
| Machine size | L 770mm*W 480mm*H 370mm |
| Gross/Net weight | 63kgs/47kgs |
| Cutting accuracy | +/- 0.01mm |
| Repeatability | 0.082mm |
| Max.material thickness | 450gsm |
| Max. cutting speed | 1600mm/s |
| Max.force | 3000g |
| Connect or interface | USB cable/Udisk/web cable/WIFI |
| Power | ﹤150w |
| Working environment | ﹢5℃-﹢35℃ |
| Power supply | 100v-240v(adaptive) |
| Suitable cutting material | Self-adhesive sticker/coated paper/PVC |
| Support software | CDR/AI/PS/Contour software/Signmaster(optional) |
| Memory | 1G |
